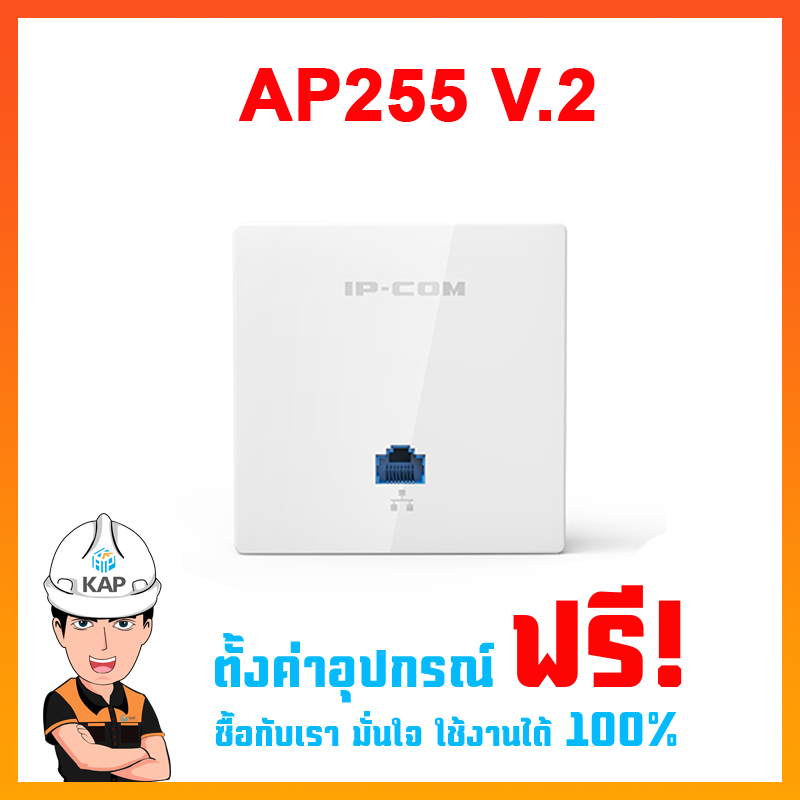

Model

AP255V2.0

Deployment

In Wall

Weight (package included)

140.1g

Dimensions

86*86*35mm

Application Scenarios

WiFi coverage for hotel rooms,villa

Hardware  Specification

Frequency

2.4G

Compliant Standard

IEEE 802.11b/g/n

Max Wireless Rate

300Mbps

Interfaces

2*10/100Mbps LAN

Button

1*Reset Button

LED

1*SYS LED

Max Power Consumption

3.4W

Power Supply

PoE 802.3af

11b 1Mbps Tx Power

18+/-1.5dBm

MCS 0 Tx Power

18+/-1.5dBm

MCS 7 Tx Power

17+/-1.5dBm

11B 1Mbps RX sensitivity

-90dBm

11N MCS7 RX sensitivity

-70dBm

Software  Specification

Operating Modes

AP,Client+AP

WiFi On/off

Support

SSID Hidden

Support

Broadcast SSIDs

2

Wireless Security

64/128 WEP,WPA-PSK,WPA2-PSK,WPA&WPA2-PSK,WPA,WPA2

Wireless Access Control

Support(Based on mac address)

Output Power

Adustable step by 1dbm

AP Isolation

Support

User Limitation

Connected user number limitation for each SSID

Weak Signal Client Limitation

Support

WMM

Support

VLAN Tagging for SSID

Support

Captive Portal

Support(Work with AP Controller)

Remote AP Mangement

Support(Work with AP Controller)

LED ON/off

Support

Diagosis Tool

ping

Schedule Reboot

Support

Cicular Reboot

Support

Device Management

Http Web

Log Record

System Log

Remote Log Record

Support

Software Update

Local or AP Controller

Device Reboot

Local or AP Controller

Device Reset

Local or AP Controller

Restore Configuration

Support

Backup Configuration

Support

AP Management

AC1000,AC2000, AC3000

Others

Default Login IP

192.168.0.254

Default Username

admin

Default Password

admin

Operating temperature

-10℃~45℃

Storage Temperature

-30℃ ~ 70℃

Operating Humidity

10%－90% (non-condensing)

Storage Humidity

10%－90%  (non-condensing)
