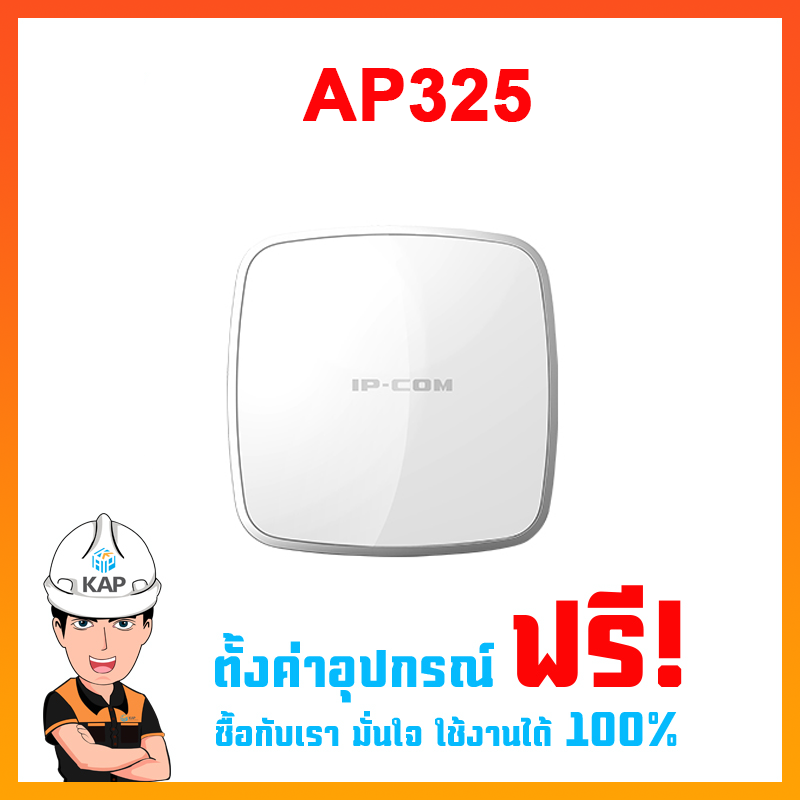

AP325
Overview
IP-COM AP325 Wireless Access Point ย่านความถี่ 2.4GHz มาตรฐาน N ความเร็วสูงสุด 300Mbps รองรับการทำ Access Controller รองรับ POE มาตรฐาน 802.3af
Product Information
Model
Mounting
Ceiling and Wall
Dimensions
144*144*40mm (W x H x L)
Application Scenarios
Small and Medium-Sized Enterprise offices, Hotels, and Primary Education Classrooms etc
Hardware Specifications
Frequency Bands
2.4GHz
PHY Data Rates
300Mbps
Wi-Fi Standards
IEEE 802.11n/g/b
Interfaces
1*10/100Mbps PoE/LAN port, 1*DC Power Jacket
Buttons
1*RESET
Antennas
2x Integrated 2.4GHz Omni-directional, 2dBi gain
Max Power Consumption
5W
LED Indicators
System
Power Supply
DC Input: 9 VDC 0.6A PoE: 802.3af compliant
Receiver Sensitivity
MCS0: -88dBm MCS7: -72dBm
Software Specifications
Operating mode
AP,WDS,Client+AP
WiFi Radio
Enable or Disable
BSSIDs
4
SSID Hiding
User Isolation
Support
Clients Limit
Connected user number limitation for every SSID
VLANs
802.1Q, 4094 VLAN IDs (1 to 4094) and SSID-based VLAN assignment
Power Save (APSD)
Multicast to unicast Conversion
WMM Capable
APSD Capable
RSSI Threshold
Adjustable Power
Adjustable step by 1dBm
Access Control
Connect limitation based on mac address
Wireless Security
64/128 WEP,WPA-PSK,WPA2-PSK,WPA&am;WPA2-PSK,WPA,WPA2
DHCP Server
VPN Pass-Through
PPTP,L2TP
Schedule Reboot
Page Timeout
Network Diagnoses
Ping
Time&Date Setting
WiFi Client Association Status
System Monitoring
Status Statistic and Event Log
Backup Configuration
Restore Configuration
Reset Device
Support from Web UI or AP Controller
Username Management
Firmware Upgrade
Centralized Management
Managed by AC2000, AC3000
Working Environment
Operating Temperature
-10?~45?
Storage Temperature
-30?~70?
Operating Humidity
10%-90% (non-condensing)
Storage Humidity
Default Login IP
192.168.0.254
Default User Name
admin
Default Password
Certifications
FCC/CE/RoHS
