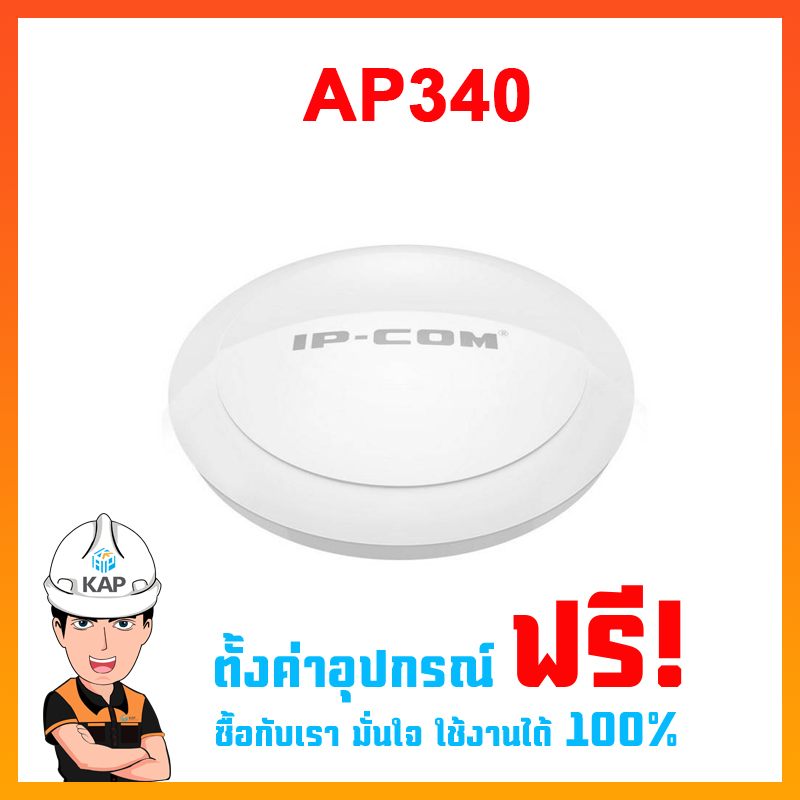

AP340
Overview
IP-COM AP340 Wireless Access Point ย่านความถี่ 2.4GHz มาตรฐาน N ความเร็วสูงสุด 300Mbps Port Lan ความเร็ว Gigabit รองรับการทำ Access Controller รองรับ POE มาตรฐาน 802.3af
Product Information
Model
Mounting
Ceiling and Wall Mount
Dimensions
200*200*30mm(W x H x L)
Application Scenarios
Small and Medium-Sized Enterprise offices, Hotels, and Primary Education Classrooms etc
Hardware Specifications
Frequency Bands
2.4GHz
PHY data rates
300Mbps
Wi-Fi Standards
IEEE 802.11n/g/b
Interfaces
1 Port ความเร็ว 10/100/1000Mbps PoE/LAN port, 1*DC Power Jacket
Buttons
1*RESET
Antennas
2 x Integrated 2.4GHz Omni-directional, 3dBi gain
Max Power Consumption
13W
LED Indicators
PWR, 2.4G
Power Supply
DC Input: 51 VDC 1.25A PoE: 802.3at compliant
Receiver Sensitivity
MCS0: -88dBm MCS7: -72dBm
Software Specifications
Operating Mode
AP,WDS,Client+AP
WiFi Radio
Enable or Disable
BSSIDs
4
SSID Hiding
User Isolation
Support
Clients Limit
Connected user number limitation for every SSID
VLANs
802.1Q, 4094 VLAN IDs (1 to 4094) and SSID-based VLAN assignment
RSSI Threshold
WMM Capable
Power Save (APSD)
Spectrum Analysis
Automatic channel control
Adjustable Power
Adjustable step by 1dbm
Access Control
Connect limitation based on mac address
Wireless Security
64/128 WEP,WPA-PSK,WPA2-PSK,WPA&WPA2-PSK,WPA,WPA2
DHCP Server
VPN Pass-Through
PPTP,L2TP
Schedule Reboot
Page Timeout
Network Diagnoses
Ping
Time&Date Setting
WiFi Client Association Status
System Monitoring
Status Statistic and Event Log
Backup Configuration
Restore Configuration
Reset Device
Support from Web UI or AP Controller
Username Management
Reboot Device
Firmware Upgrade
Centralized Management
Managed by AC2000, AC3000
Working Environment
Operating Temperature
-10?~45?
Storage Temperature
-30?~70?
Operating Humidity
10%-90% (non-condensing)
Storage Humidity
Default Login IP
192.168.0.254
Default User Name
admin
Default Password
Certifications
FCC/CE/RoHS
