Product Information

Model :

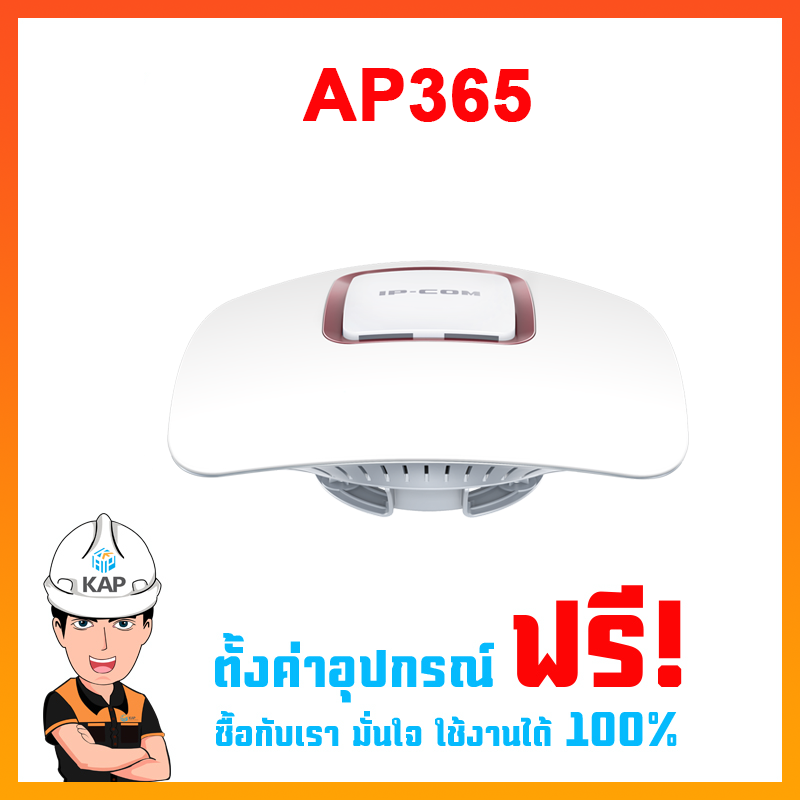

AP365(TH)

Deployment :

Ceiling and Wall Mount

Dimensions:

234*234*58.4mm

Hardware Specifications

Frequency Range:

2.4GHz/5GHz

Maximum wireless speed:

1750Mbps

Compliant Standards:

IEEE 802.11n/g/b ， 802.11ac/n/a

User Capacity:

75 clients

Interfaces:

2*10/100/1000Mbps PoE/LAN port

Button:

1*RESET

Antennas:

3x Integrated 2.4GHz Omni-directional, 4dBi gain

3x Integrated 5GHz Omni-directional, 5dBi gain

Max Power Consumption:

23W

LED indicator:

PWR, 2.4G ，5G

Power Supply:

PoE 802.3at

Reception sensitivity:

MCS0: -88dbm

MCS7: -72dbm

Software Specifications

IP Setting:

Support

Management VLAN:

Modify from Web UI or AP Controller

Operating mode:

AP,WDS,Client+AP

WiFi Radio:

Enable or Disable

SSID Number:

12

Transmission Power:

Adjustable step by dbm

Access Control:

Connect limitation based on mac address

Wireless Security:

64/128 WEP,WPA-PSK,WPA2-PSK,

WPA&WPA2-PSK,WPA,WPA2

DHCP Server:

Support

VPN Pass-Through:

PPTP,L2TP

Schedule Reboot:

Support

Circularly Reboot:

Support

System Log:

Support

Centralized Management:

Managed by AC2000, AC3000

Working Environment

Operation Temperature:

-10℃~45℃

Storage Temperature:

-30 ℃ ~ 70 ℃

Operation Humidity:

10%－90% (non-condensing)

Storage Humidity:

10%－90% (non-condensing)

Default Login IP:

192.168.0.254

Default User Name:

admin

Default Password:

admin

Certifications:

FCC/CE/RoHS
