AP515
Overview

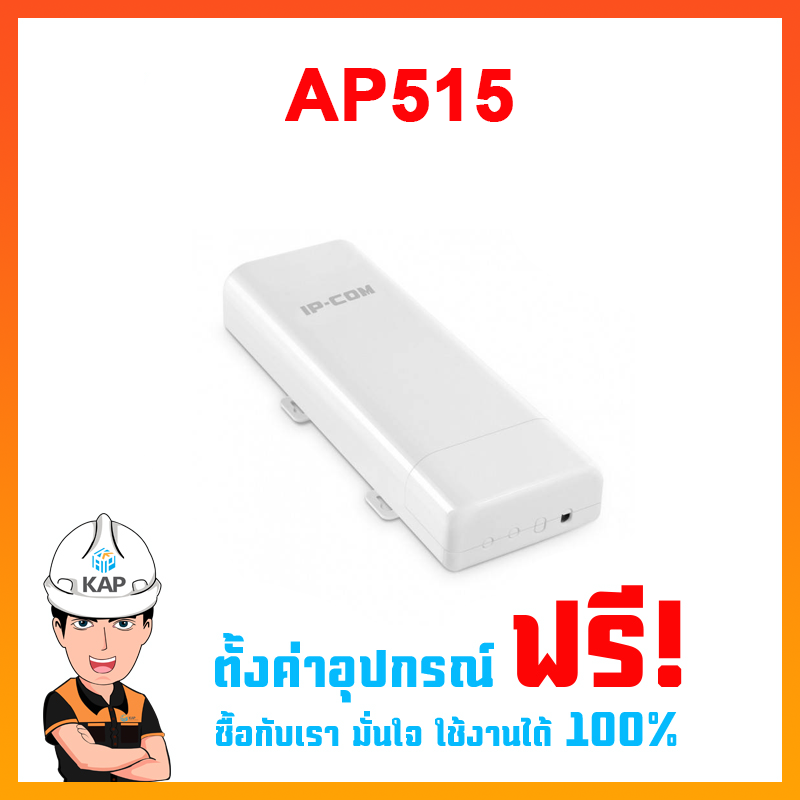

IP-COM AP515 Outdoor Wireless Access Point 2.4GHz มาตรฐาน N ความเร็ว 300Mbps เสาแบบทิศทาง 7dBi Port Gigabit พร้อม POE ในชุดอุปกรณ์ หรือใช้ร่วม POE มาตรฐาน 802.3af
Product Information
Model
Deployment
Pole Mount
Dimensions
270*94.86*67.5mm
Application Scenarios
WiFi coverage for hotel pool,garden,campus,park etc
Hardware Specifications
Frequency Bands
2.4GHz
PHY Data Rates
300Mbps
Wi-Fi Standards
IEEE 802.11n/g/b
CPU Processor
Broadcom 533MHz
Interfaces
1*10/100/1000Mbps PoE/LAN port
Buttons
1*RESET
Antennas
7dBi Directional Antenna
Antenna Beamwidth
Horizontal: 70? Vertical: 70?
Max Power Consumption
15W
Waterproof Level
IP64
LED Indicators
PWR,WiFi,LAN,Control
Power Supply
PoE 802.3at
Receiver Sensitivity
MCS0: -88dBm MCS7: -72dBm
Software Specifications
IP Setting
Support
Operating mode
AP,WDS,Client+AP
WiFi Radio
Enable or Disable
BSSIDs
4
SSID Hiding
User Isolation
Clients Limit
Connected user number limitation for every SSID
VLANs
802.1Q, 4094 VLAN IDs (1 to 4094) and SSID-based VLAN assignment
RSSI Threshold
WMM Capable
APSD Capable
Wireless Client Statistic
Adjustable Power
Adjustable step by 1dBm
Access Control
Connect limitation based on mac address
Wireless Security
64/128 WEP,WPA-PSK,WPA2-PSK,WPA&WPA2-PSK,WPA,WPA2
DHCP Server
VPN Pass-Through
PPTP,L2TP
Schedule Reboot
Circularly Reboot
Page Timeout
Network Diagnoses
Ping
Time&Date Setting
System Log
Backup Configuration
Restore Configuration
Reset Device
Support from Web UI or AP Controller
Username Management
Reboot Device
Firmware Upgrade
Centralized Management
Managed by AC1000/AC2000/AC3000
Working Environment
Operating Temperature
-20~55
Storage Temperature
-30 ~ 70
Operating Humidity
10%-90% (non-condensing)
Storage Humidity
Default Login IP
192.168.0.254
Default User Name
admin
Default Password
Certifications
FCC/CE/RoHS
