DataSheet CCR2004-16G-2S+

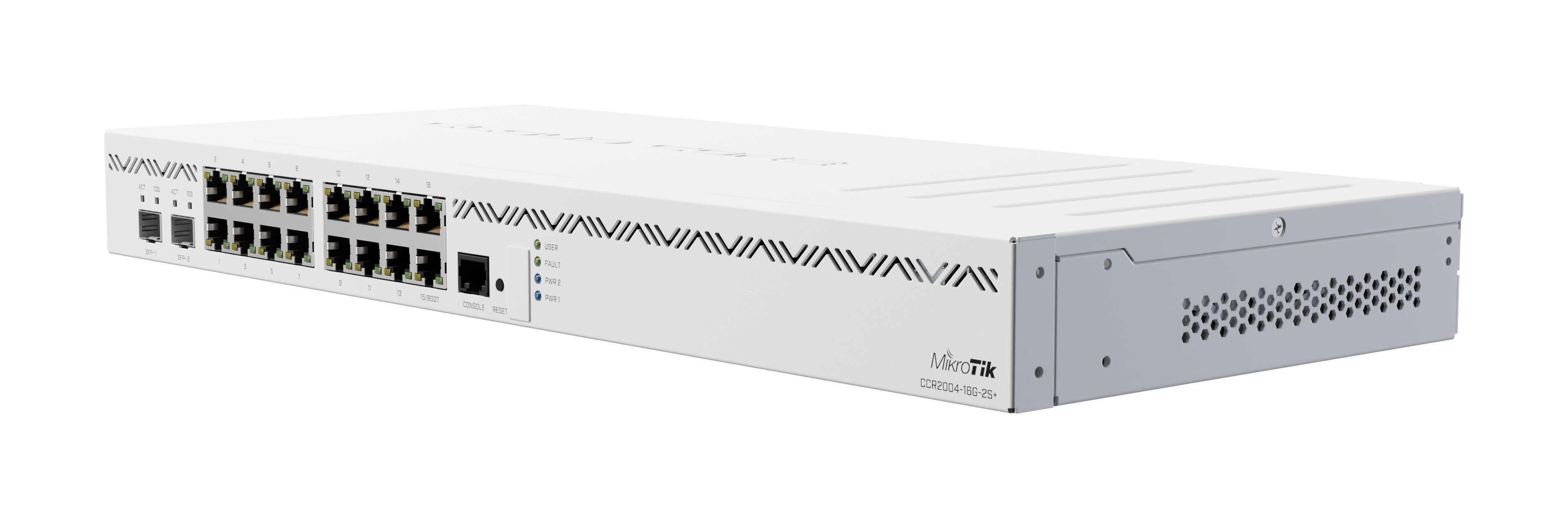

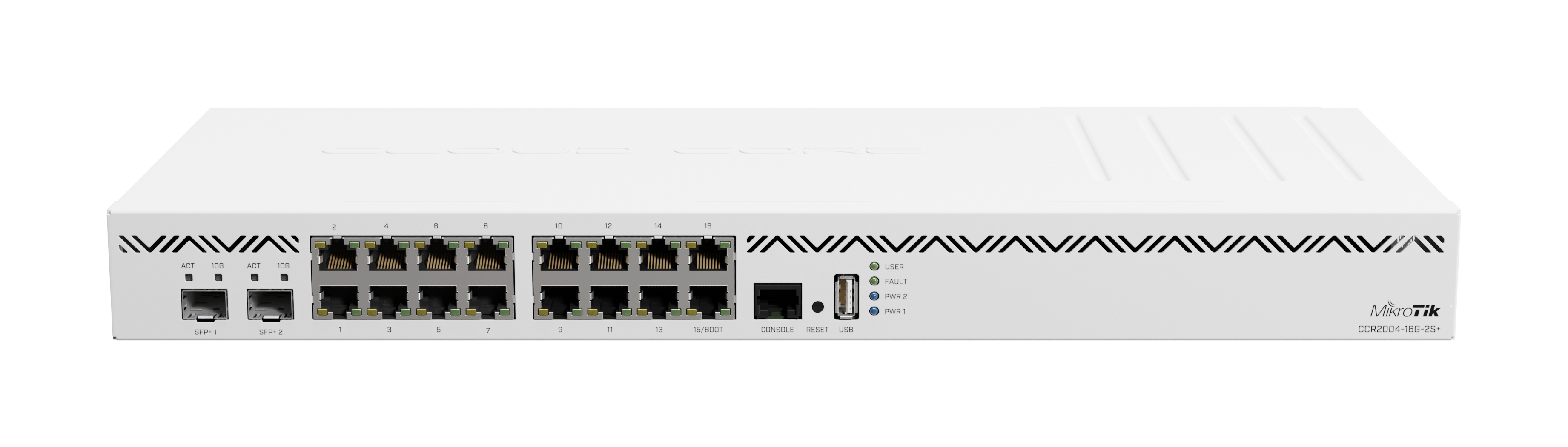

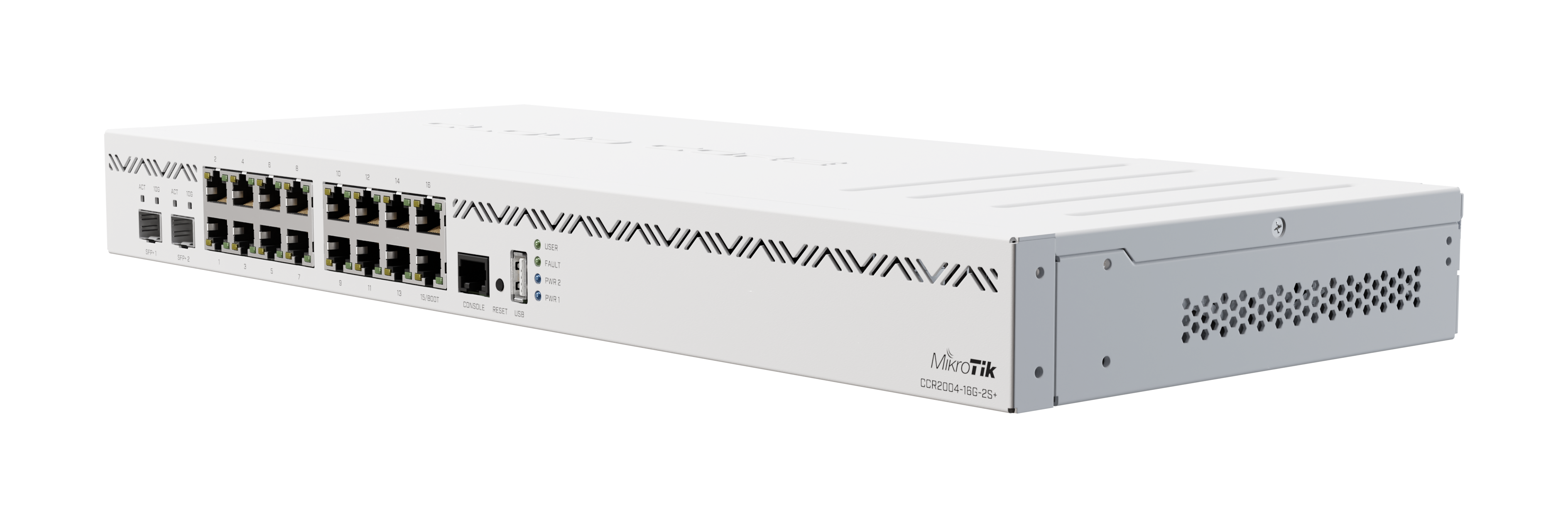

CCR2004-16G-2S+ สามารถรองรับ Users Online ได้มากถึง 1000 Clients และ รองรับ Throughput (อินเตอร์เน็ต) ได้มากกว่า 1 Gbps (แบบมีการเขียน Firewall) ; Mikrotik CCR2004-16G-2S+ ฮาร์ดแวร์ รองรับการทำงาน CPU 4 Core และ RAM 4GB มี Interface LAN Gigabit จำนวน 16 Ports และ Interface SFP+ 10Gbps ให้มาอีก 2 Ports อีกด้วย ; และ CCR2004-16G-2S+ ยังมีช่อง Serial console port แบบ RJ45 ; และยังรองรับ Dual Power supplies อีกต่างหาก
CCR2004-16G-2S+ รองรับ Interface (2) 1/10G SFP+ Ethernet Ports
รองรับ Interface Gigabit (16) 10/100/1000 Ethernet Port

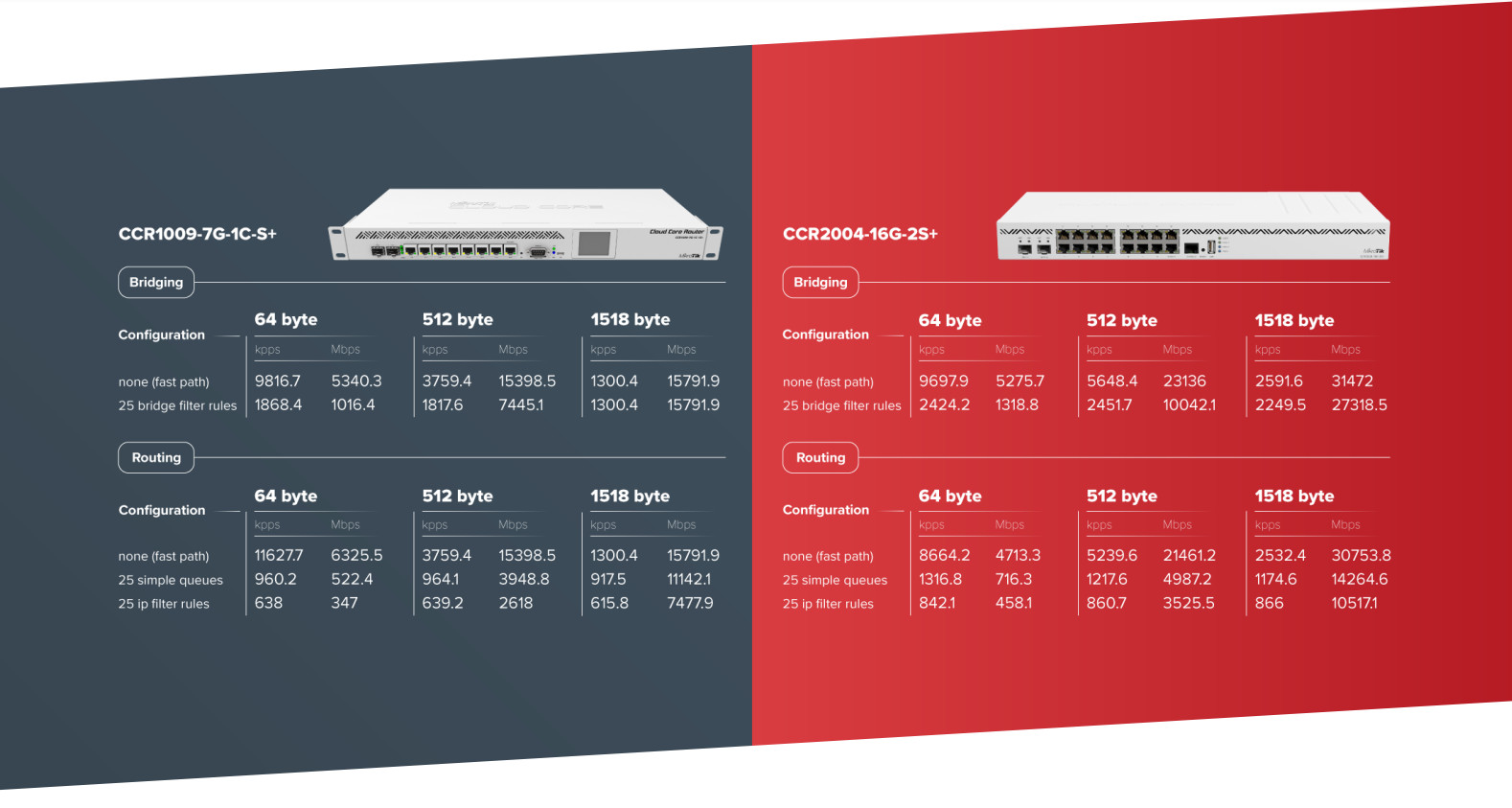

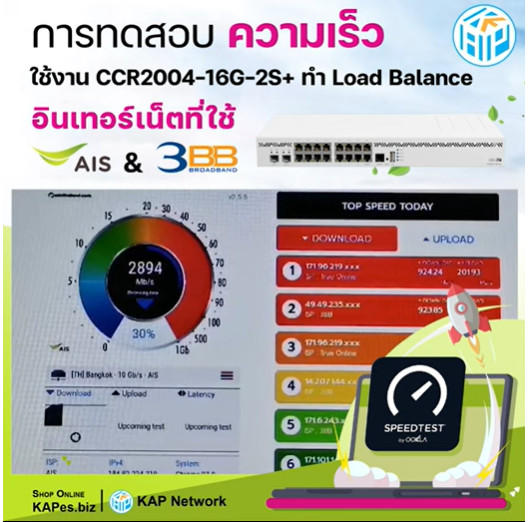

รองรับ Throughput (อินเตอร์เน็ต) ได้มากกว่า 1 Gbps
รองรับการทำงาน IPsec Hardware Encryption
รองรับ features Hotspot ; Dynamic Routing ; VPN ; Firewall ; และอื่นๆอีกมากมาย
Specifications
Details
Product code
CCR2004-16G-2S+
Architecture
ARM 64bit
CPU
AL32400
CPU core count
4
CPU nominal frequency
1700 MHz
RouterOS license
6
Operating System
RouterOS (v7 only)
Size of RAM
4 GB
Storage size
128 MB
Storage type
NAND
MTBF
Approximately 200'000 hours at 25C
Tested ambient temperature
-20°C to 60°C
IPsec hardware acceleration
Yes

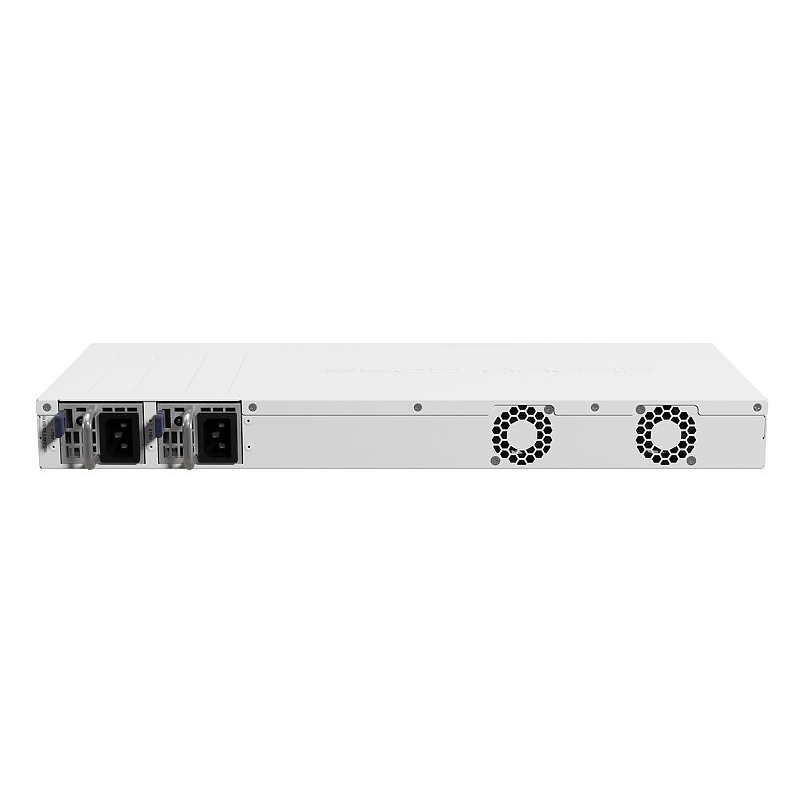

Powering
Number of AC inputs
2
AC input range
100-240
Frequency (Hz)
50/60
Max power consumption
48 W
Max power consumption without attachments
35 W
FAN count
Ethernet
10/100/1000 Ethernet ports
16
Fiber
SFP+ ports
Peripherals
Serial console port
RJ45
Other
CPU temperature monitor
PCB temperature monitor
Voltage Monitor
Certification & Approvals
Certification
CE, EAC, ROHS
IP
IP20
