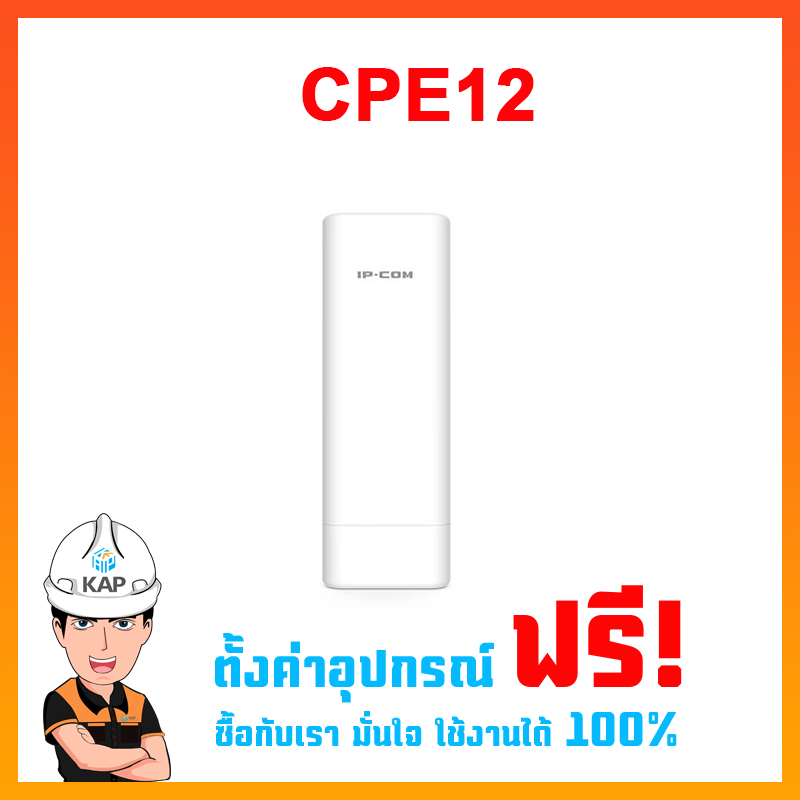

CPE12
Overview
IP-COM CPE12 Wireless CPE Outdoor Point to Point 5GHz ความเร็วสูงสุด 300Mbps, เสาอากาศแบบทิศทาง 14dBi สำหรับเชื่อมต่อเครือข่ายระยะไกล Point To Point ได้ระยะทาง 3-5Km พร้อม Passive POE เดินสาย Lan ได้ระยะถึง 60 เมตร
Product Information
Model
Dimensions
270*94.86*67.5mm
Deployment
Pole Mount/Wall Mount
Application Scenarios
WISP CPE, Data transmission and Long range video surveillance
Hardware Features
Frequency Range
5GHz
Compliant Standards
IEEE 802.11a/n
Private TDMA Protocol
IMAX
Maximum Wireless Rate
300Mbps
Interfaces
1*10/100Mbps Ethernet Port
Antennas Gain
14dbi
Antenna Beamwidth
Horizonal: 30° Vertical: 30° Elevation: 30°
Reset Button
1
GND
Power Consumption
8.5W
Waterproof Level
IP65
LED indicator
PoE/LAN,LED1,LED2,LED3
Power Method
24V0.5A Passive PoE
Lightning Protection
6000V
Passive PoE
Passive power over ethenet via PoE/LAN (+4,5pins; -7,8pins) Voltage range: 21-25V DC
Receiver sensitivity
MCS0: -96dbm MCS7: -72dbm
Software Features
Operating mode
AP/Station/WISP/P2MP/WDS Repeater/Router
Enable/Disable Wireless Radio
Support
SSID Hidden
Wireless Client isolation
SSID Isolation
Channel Bandwidth
10/20/30/40MHz
Client Limitation For SSID
Wireless Access Control
Weak Signal Client Limitation
Transmission Power
Adjustable power by 1dBm
WMM Capable
APSD Capable
Wireless Security
64/128 WEP,WPA-PSK,WPA2-PSK,WPA&WPA2-PSK,WPA,WPA2
Transparent Bridge
VLAN Tagging for SSID
DHCP Server
VPN Pass-Through
PPTP,L2TP
Remote Web access
Schedule Reboot
Page Timeout
Ping Watchdog
Dyndns
noip, dyndns.org
Network Diagnoses
Ping, Traceroute, Signal Scan
Time&Date Setting
Firmware upgrade
Backup/Restore Configuration
Username Managerment
System Log
Managed By Controller
PC Software -- CPE Controller
Others
Package Contents
1*5km Point to Point Outdoor CPE CPE12 1*PoE Power Adapter 1*Quick Installation Guide
Operating Temperature
-30℃ ~ 60℃
Storage Temperature
-40℃ ~ 70℃
Operating Humidity
10%~90% non-condensing
Storage Humidity
Default login IP
192.168.2.1
Default Login Username
admin
Default Login Password
Certifications
FCC/CE/RoHS
