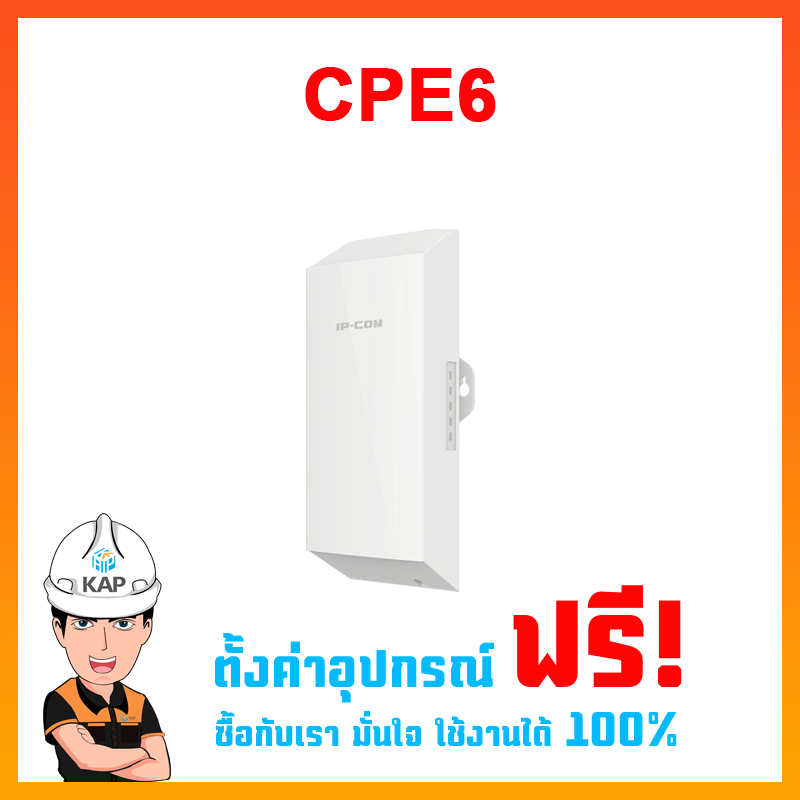

CPE6
Model
Dimensions
193.5*80*67.5mm
Deployment
Pole Mount
Application Scenarios
WISP CPE, Data transmission and Long range video surveillance
Frequency Range
5GHz
Compliant Standards
IEEE 802.11a/n
Private TDMA Protocol
IMAX
Maximum Wireless Rate
300Mbps
Interfaces
1*10/100Mbps Ethernet Port
Antennas Gain
12dbi
Antenna Beamwidth
Horizontal: 30° Vertical: 30°
Reset Button
1
DC Jack
Power Consumption
6.3W
Waterproof Level
IP65
LED indicator
PoE/LAN,WiFi LED1,LED2,LED3
Power Method
12V1A Passive PoE or DC Adapter
Lightning Protection
6000V
Passive PoE
Passive power over ethenet via PoE/LAN (+4,5pins; -7,8pins) Voltage range: 11-13.8V DC
Receiver sensitivity
MCS0: -96dbm MCS7: -72dbm
Operating mode
AP/Station/WISP/P2MP/WDS Repeater/Router
Enable/Disable Wireless Radio
Support
SSID Hidden
Wireless Client isolation
SSID Isolation
Channel Bandwidth
10/20/30/40MHz
Client Limitation For SSID
Wireless Access Control
Weak Signal Client Limitation
Transmission Power
Adjustable power by 1dBm
WMM Capable
APSD Capable
Wireless Security
64/128 WEP,WPA-PSK,WPA2-PSK,WPA&WPA2-PSK,WPA,WPA2
Transparent Bridge
VLAN Tagging for SSID
DHCP Server
VPN Pass-Through
PPTP,L2TP
Remote Web access
Schedule Reboot
Page Timeout
Ping Watchdog
Dyndns
noip, dyndns.org
Network Diagnoses
Ping, Traceroute, Signal Scan
Time&Date Setting
Firmware upgrade
Backup/Restore Configuration
Username Managerment
System Log
Managed By Controller
PC Software -- CPE Controller
Package Contents
1*2km Point to Point Outdoor CPE 1*Power Adapter 1*PoE Injector 2*Plastic Staps 1*Quick Installation Guide
Operating Temperature
-30℃ ~ 60℃
Storage Temperature
-40℃ ~ 70℃
Operating Humidity
10%~90% non-condensing
Storage Humidity
Default login IP
192.168.2.1
Default Login Username
admin
Default Login Password
Certifications
FCC/CE/RoHS
