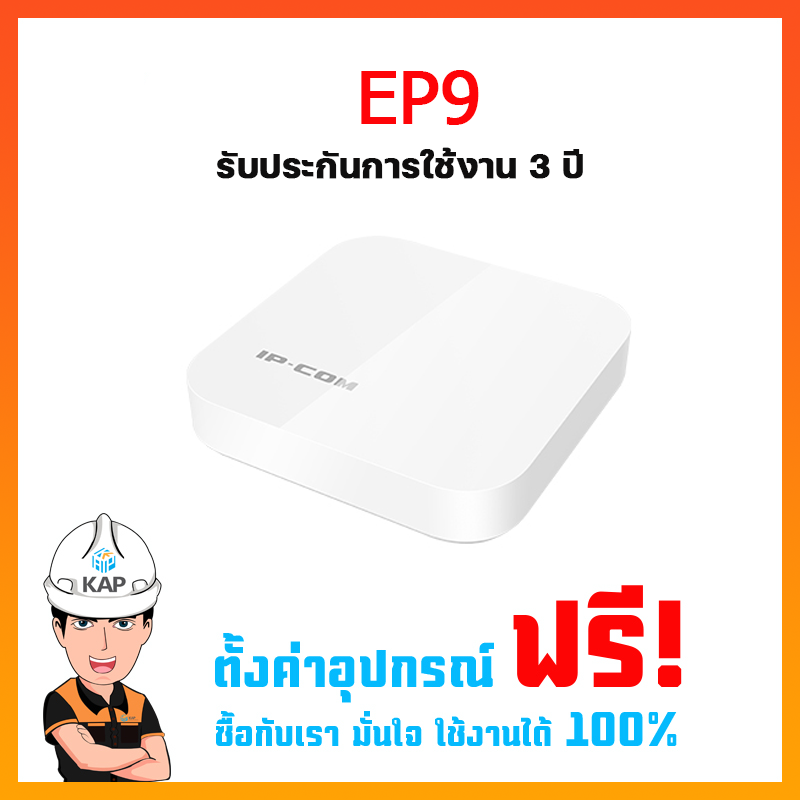

EP9(Mesh Slave)
Overview
IP-COM EP9 AC1200 Enterprise Mesh Wi-Fi System Extender, มาตรฐาน 802.11AC Wave 2 ความเร็วสูงสุด 1,200Mbps (867Mbps@5GHz / 300Mbps@2.4GHz), True Mesh technology
Node Mesh อุปกรณ์ตัวเสริม สำหรับเชื่อมต่อด้วย Mesh System กับอุปกรณ์ IP-COM EW9
Hardware Specification
Frequency
Dua-Band：2.4GHz + 5GHz
Wireless Rate
300Mbps@2.4GHz + 867Mbps@5GHz
11AC Wave 2
Support
Beamforming
Networking Technology
True Mesh
Wireless Power
2.4G：19dBm 5G：19dBm
Antenna
4 * 4dBi, Horizontal omnidirectional antenna
Interface
1 * Power Port, 1*Reset button
Software Specification
QoS
Seamless Roaming
Installation and Deployment
Mounting
wall mount/ceiling mount/pole mount/desk mount
APP Installation and Configuration
Route Mode and Bridge Mode
Mesh nodes in one Mesh System
Typical:3 Max:9
Management and Maitainance
APP Management
Authentication Access
Local Certifiication
Other
Dimensions
Product：170*170*36mm Packing：260*175*55mm
Packing List
Bracketx1, Boltx4、Expansion sleevex4, Expansion scewx4, Ribbonx2
Packing Quantities
20
Power Dimensions
External switching power supply 12V/1A
Certification
FCC\CE\RoHs
