EW9(Mesh Mastet)
Overview

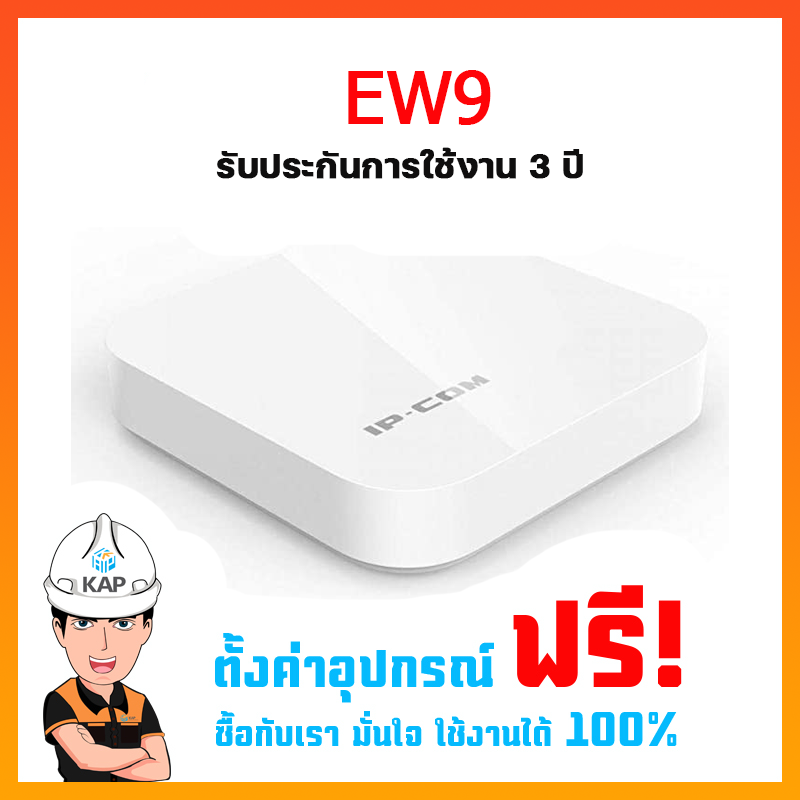

IP-COM EW9 AC1200 Enterprise Mesh Wi-Fi System, มาตรฐาน 802.11AC Wave 2 ความเร็วสูงสุด 1,200Mbps (867Mbps@5GHz / 300Mbps@2.4GHz), พร้อม 4 Port Lan ความเร็ว Gigabit, True Mesh technology
Root Mesh อุปกรณ์กระจายสัญญาณ Wireless ตัวหลัก, เชื่อมต่อสาย LAN
Hardware Specification
Frequency
Dua-Band：2.4GHz + 5GHz
Wireless Rate
300Mbps@2.4GHz + 867Mbps@5GHz
11AC Wave 2
Support
Beamforming
Networking Technology
True Mesh
Wireless Power
2.4G：19dBm 5G：19dBm
Antenna
4*4dBi, Horizontal omnidirectional antenna
Interface
1*Power Port, 1*Reset button, 4*Gigabit Port
Software Specification
WAN Ports
dual WAN
QoS
Seamless Roaming
Installation and Deployment
Mounting
wall mount/ceiling mount/pole mount/desk mount
APP Installation and Configuration
Route Mode and Bridge Mode
Mesh nodes in one Mesh System
Typical:3 Max:9
Management and Maitainance
APP Management
Authentication Access
Local Certifiication
Other
Dimensions
Product：170*170*36mm Packing：260*175*55mm
Packing List
Bracketx1, Boltx4、Expansion sleevex4, Expansion scewx4, Ribbonx2
Packing Quantities
20
Power Dimensions
External switching power supply 12V/1A
Certification
CCC\FCC\CE\RoHs
