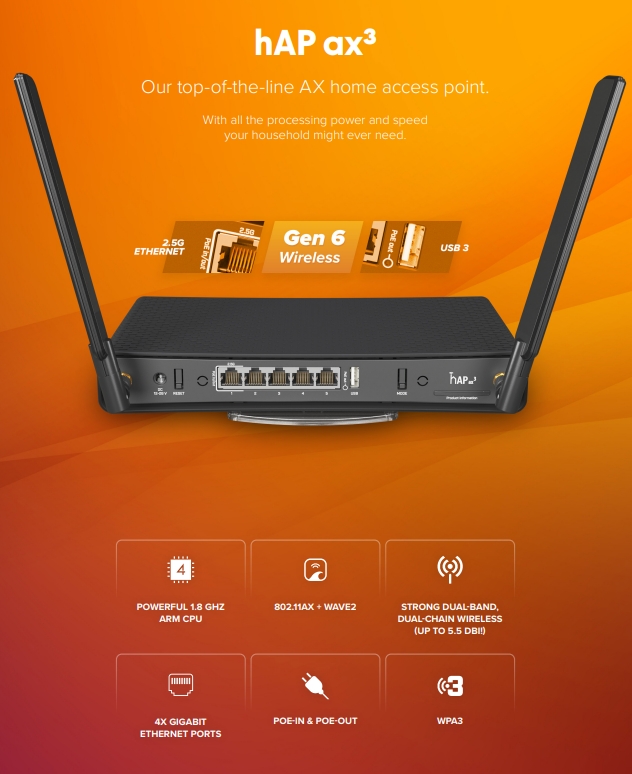

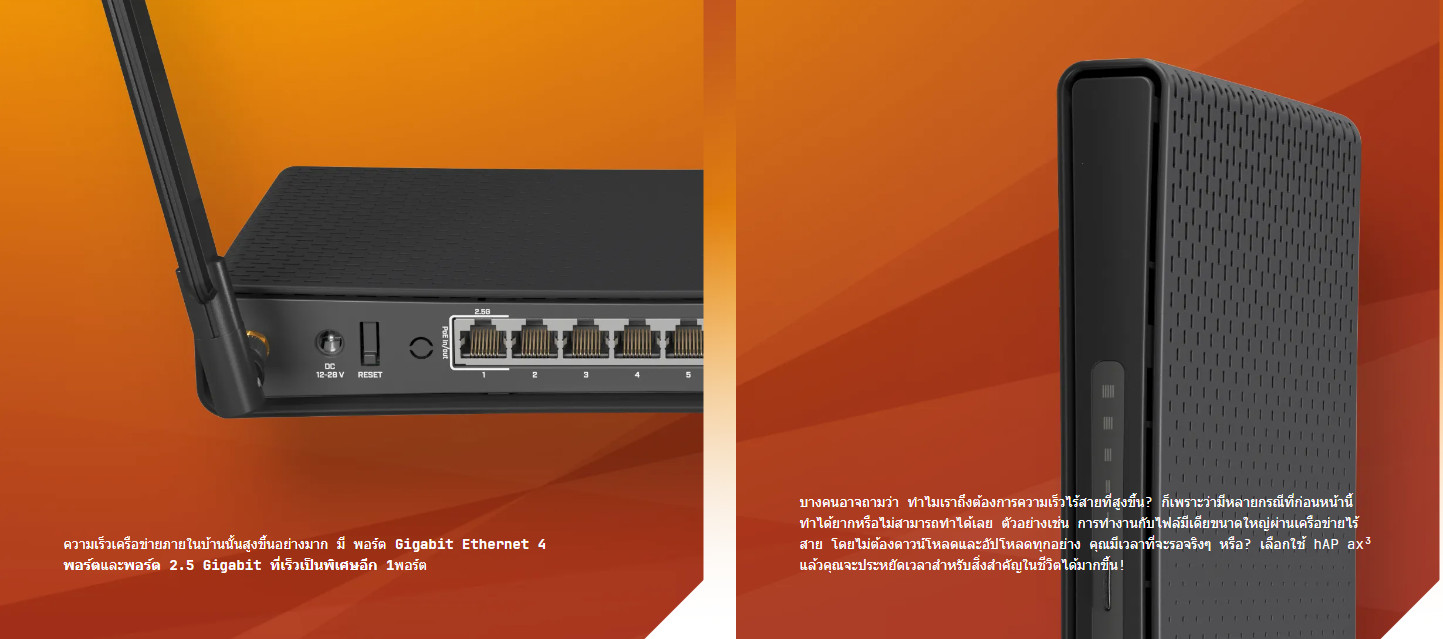

hAP ax 3
>>> รับประกันตลอดการใช้งาน <<<
Details
Product code
C53UiG+5HPaxD2HPaxD
Architecture
ARM 64bit
CPU
IPQ-6010
CPU core count
4
CPU nominal frequency
auto (864 - 1800) MHz
RouterOS license
6
Operating System
RouterOS v7
Size of RAM
1 GB
Storage size
128 MB
Storage type
NAND
MTBF
Approximately 200'000 hours at 25C
Tested ambient temperature
-40°C to 70°C
IPsec hardware acceleration
Yes
Wireless 2.4 GHz Max data rate
574 Mbit/s
Wireless 2.4 GHz number of chains
2
Wireless 2.4 GHz standards
802.11b/g/n/ax
Antenna gain dBi for 2.4 GHz
3.3
Wireless 2.4 GHz chip model
QCN-5022
Wireless 2.4 GHz generation
Wi-Fi 6
Wireless 5 GHz Max data rate
1200 Mbit/s
Wireless 5 GHz number of chains
Wireless 5 GHz standards
802.11a/n/ac/ax
Antenna gain dBi for 5 GHz
5.5
Wireless 5 GHz chip model
QCN-5052
Wireless 5 GHz generation
WiFi speed
AX1800
10/100/1000 Ethernet ports
Number of 1G Ethernet ports with PoE-out
1
Number of 2.5G Ethernet ports
Number of USB ports
USB Power Reset
USB slot type
USB 3.0 type A
Max USB current (A)
Number of DC inputs
2 (DC jack, PoE-IN)
DC jack input Voltage
12-28 V
Max power consumption
38 W
Max power consumption without attachments
15 W
Cooling type
Passive
PoE in
Passive PoE
PoE in input Voltage
18-28 V
PoE-out ports
Ether 1
PoE out
Max out per port output (input 18-30 V)
0.625 A
Max total out (A)
Total output current
0.625
Total output power
15
Certification
CE, FCC, IC, EAC, ROHS
CPU temperature monitor
Mode button
