Product Specification

Overview

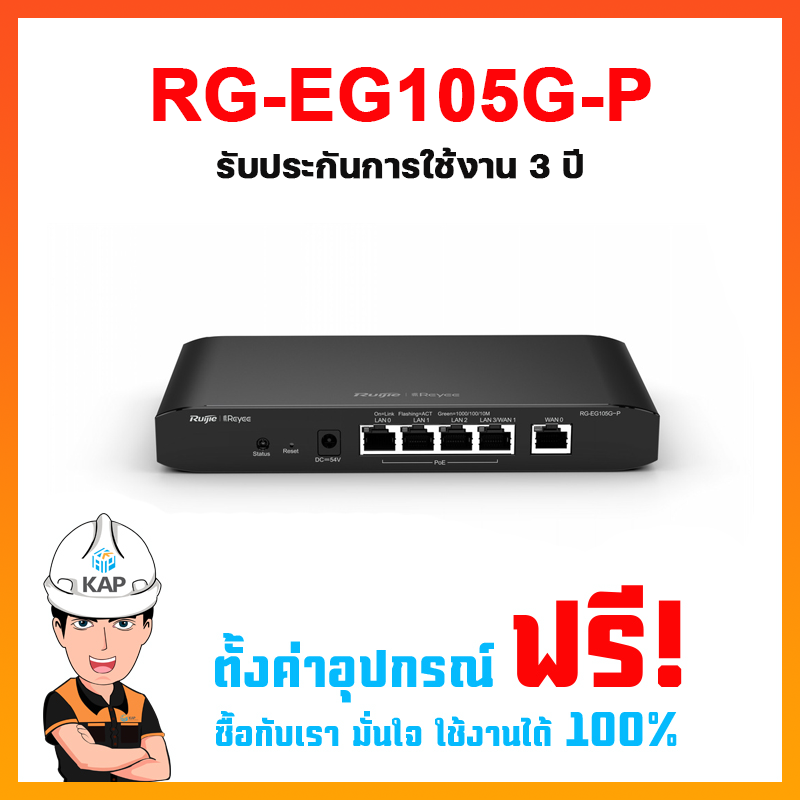

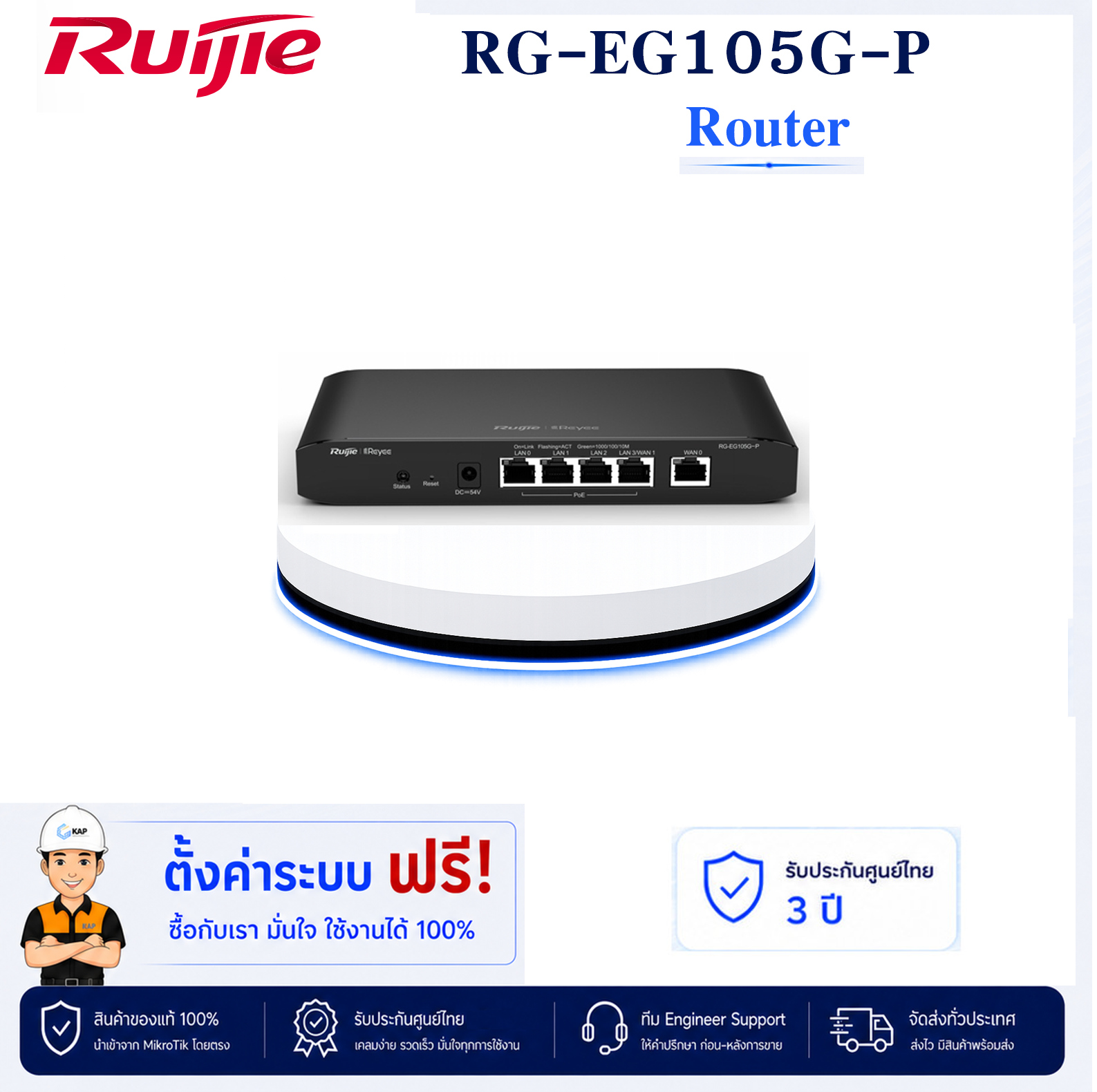

Reyee RG-EG105G-P Cloud Managed Router 2 WAN รองรับ 100 Concurrent users, พร้อม Switch Gigabit POE 4 Port 54W

รองรับการ Managed และ Monitor by Ruijie Cloud มาพร้อม Cloud License ตลอดชีพ

Fixed ports

5 10/100/1000M Base-T ports, supporting up to 2 WAN ports
(Default: 1 WAN port, 4 LAN ports LAN3 can be switched to WAN1 port)

RAM

128MB

Flash

16MB

PoE

<60W (With POE Load)

Maximum number of clients

Up to 100 concurrent clients

Recommended bandwidth

500M asymmetric bandwidth (flow control disabled)
300M asymmetric bandwidth (flow control enabled)

Local power supply

Support 220V AC local power supply

Power consumption

<6W

Basic network features

Network access

PPPoE dial-up, DHCP client, static IP, automatic identification of access methods, automatic avoidance of WAN port address conflicts, MAC cloning, obtaining account passwords from existing routers

Routing

Static routing, policy-based routing, carrier address routing, active/standby mode, load balancing based on source address, flow-based load balancing, port-based weighted load balancing of data streams

Security

ACL, IP-MAC binding, MAC address filtering, dynamic ARP, static ARP binding, NAT, NAPT, port mapping

Other protocols

DHCP Server, DHCP Client, DHCP Option43 / 138, DNS Client, DNS Server, DNS Proxy, TFTP, NTP, DDNS

Gateway

Application recognition

Built-in self-developed application signature database to identify applications
Support free upgrades

Flow control

Support custom flow control policies, IP-based automatic bandwidth assignment

Traffic audit

Real-time traffic audit, IP traffic visualization

Behavior management

Time-based and IP policy-based access control

VPN

IPsec VPN (8 tunnels) server and client

Wireless management

Management capacity

In AC mode, the maximum management capacity is 500
In gateway mode, the maximum management capacity is 150

AP management

Support multi-SSID configuration, SSID hiding, channel setting, power setting, AP wired port setting, AP online upgrade, STA quantity setting, STA blacklist and whitelist

Roaming

Support local forwarding roaming, Layer 2 roaming, Layer 3 roaming between APs, viewing of STA roaming track

Switch management

Management capacity

Maximum manageable cloud managed switches: 128

Port management

Loop protection, port mirroring, port isolation, port configuration, PoE configuration, port limit, storm control, static MAC, MAC search

Status display

Port statistics, monitoring information, cable detection, VLAN configuration, MAC list

Device management

Per-device upgrade, batch upgrade

Special features

Featured solutions

Single-cable IPTV solution, port service VLAN and network segment isolation solution, smart fault diagnosis solution, intranet penetration solution, auto-networking solution

Flexible management

Eweb and Ruijie Cloud

Physical specifications

Dimensions

206.5×108.5×28 (mm)

Weight

0.84kg

Temperature

Operating temperature: 0 - 40C
Storage temperature: -10C - 70C

Humidity

Operating humidity: 10% ~ 90%  (non-condensing)
Storage humidity: 5% ~ 95% (non-condensing)
