Product Specification

Overview

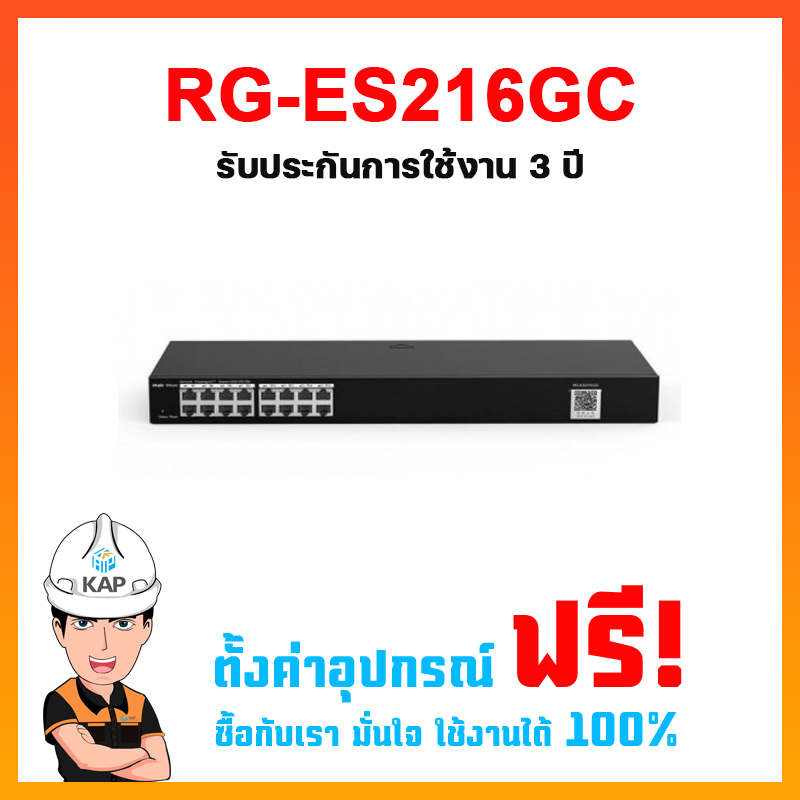

Reyee RG-ES216GC Cloud Managed Smart Switch for IP surveillance 16 Port Gigabit

รองรับการ Managed และ Monitor by Ruijie Cloud มาพร้อม Cloud License ตลอดชีพ

Ports

16 10/100/1000 Base-T Ports

Switching capacity

32Gbps

Packet forwarding rate

24Mpps

Surge protection

Common mode: 6KV

Electrostatic discharge

Air discharge: 6KV
Contact discharge: 4KV

Power consumption

≤12W

Power supply

Built-in power supply

Dimensions (W x D x H)

440x165x44mm

MTBF

>200K

Operating temperature

0 to 40°C

Storage temperature

-40~70ºC

Operating humidity

10% to 90% RH

Storage humidity

5% to 95% RH

MAC capacity

8K

Static MAC address

16

VLAN

Support 802.1Q VLAN

Port management

Support port status display, port traffic statistics, port duplex / negotiation rate configuration, flow control configuration

Security

Support broadcast storm suppression, port speed limit, port isolation

L2 features

Support port mirroring, loop protection, cable detection

Management

Support management and configuration through web management interface, Ruijie Cloud platform and Ruijie Cloud app
