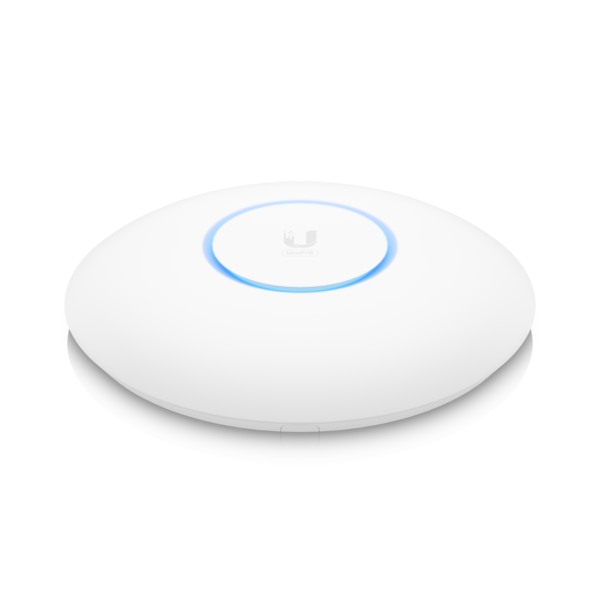

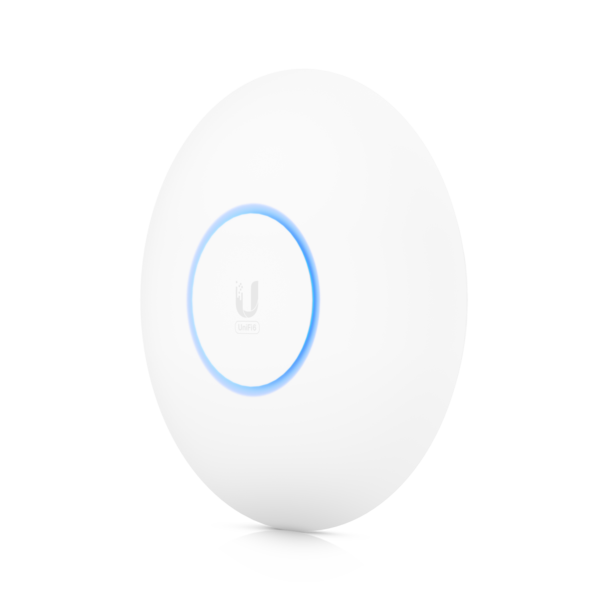

UniFi6 Enterprise
>>> รับประกันใช้งาน 3 ปี<<<
ข้อมูลอุปกรณ์
Features:
WiFi 6 support (2.4/5/6 GHz bands)
10.2 Gbps aggregate throughput rate

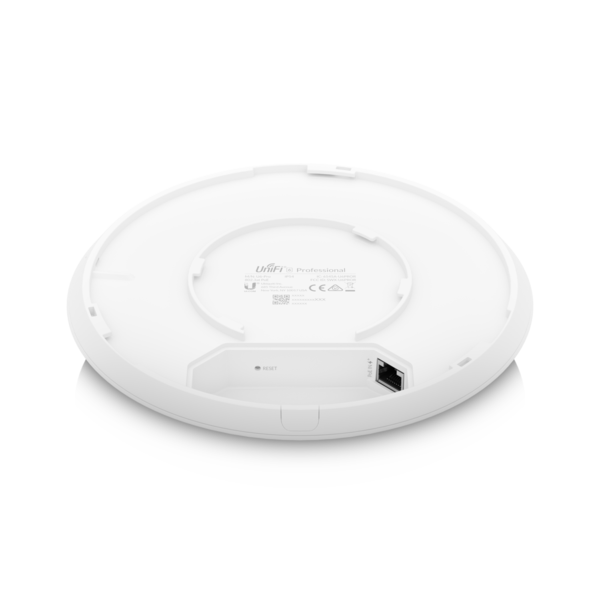

(1) 2.5GbE RJ45 port (PoE In)
Powered with PoE+
Specification:
Mechanical

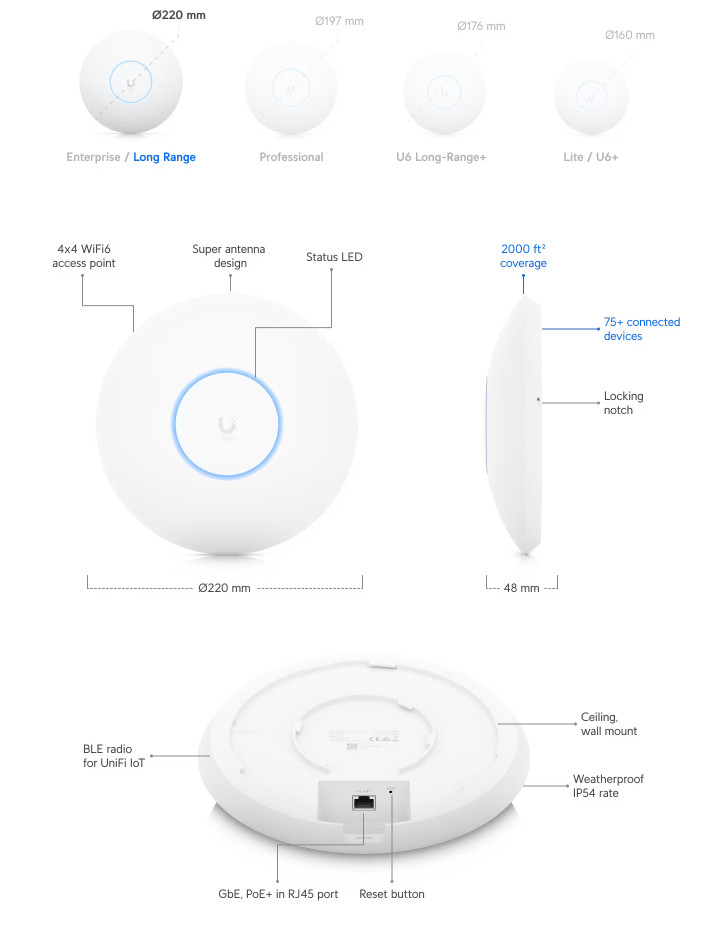

Dimensions
Ø220 x 48.1 mm (Ø8.66 x 1.89")
Weight
Without mount: 960 g (2.1 lb) With mount: 1090 g (2.4 lb)
Enclosure materials
Top housing: plastic Bottom housing: aluminum
Mount material
SGCC steel
Hardware
Management interface
Ethernet Bluetooth
Networking interface
(1) 2.5GbE RJ45 port
Button
Reboot and factory-reset
LED
W/B
Power method
PoE+
Power supply
UniFi PoE switch 48V, 0.5A PoE adapter (optional)ซื้อเพิ่ม
Supported voltage range
44 - 57VDC
Max. power consumption
22W
Max. TX power 2.4 GHz 5-7 GHz
22 dBm 26 dBm
MIMO 2.4 GHz 5 GHz 6 GHz
2 x 2 (UL MU-MIMO) 4 x 4 (DL/UL MU-MIMO) 4 x 4 (DL/UL MU-MIMO)
Throughput rate 2.4 GHz 5 GHz 6 GHz
573.5 Mbps 4.8 Gbps 4.8 Gbps
Antenna gain 2.4 GHz 5 GHz 6 GHz
3.2 dBi 5.3 dBi 6 dBi

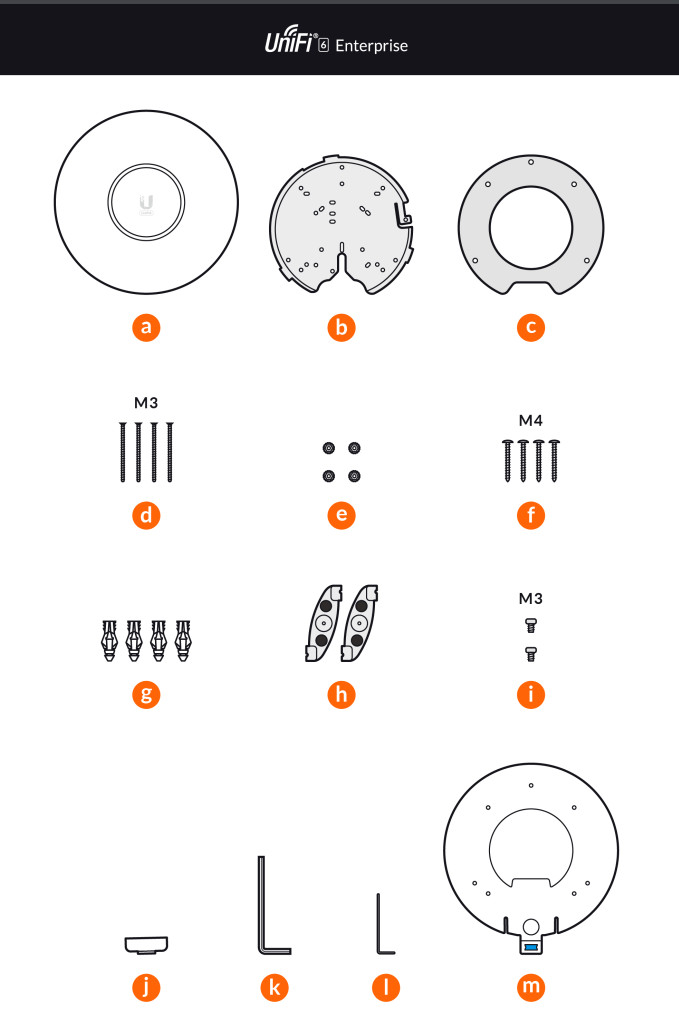

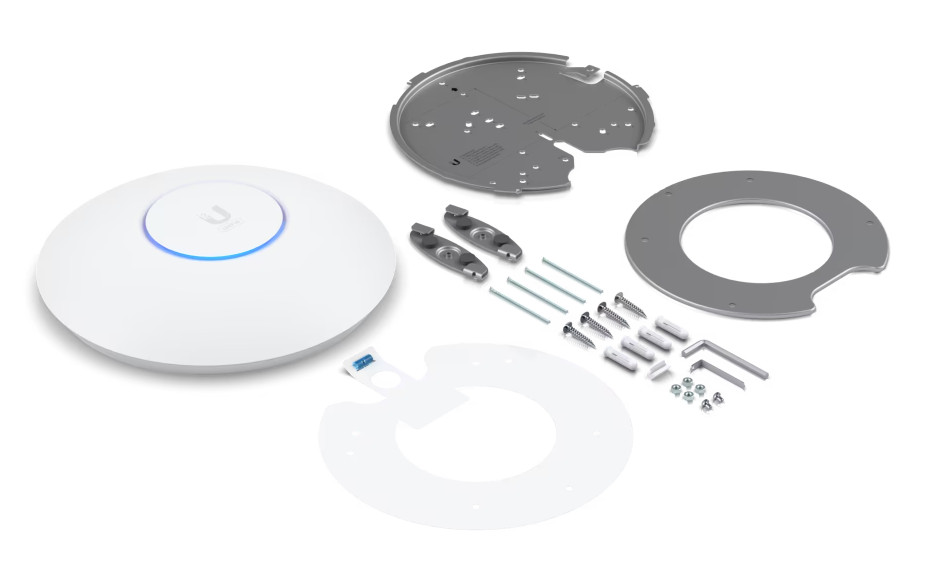

Mounting
Wall/ceiling (included)
Operating temperature
-30 to 60° C (-22 to 140° F)
Operating humidity
5 - 95% noncondensing
Certifications
CE, FCC, IC
Software
WiFi standards
802.11a/b/g WiFi 4/WiFi 5/WiFi 6/WiFi 6E
Wireless security
WPA-PSK, WPA-Enterprise (WPA/WPA2/WPA3)
BSSID
8 per radio
VLAN
802.1Q
Advanced QoS
Per-user rate limiting
Guest traffic isolation
Supported
Concurrent clients
600+
Zero wait DFS
Yes
Supported Data Rates (Mbps)
802.11a
6, 9, 12, 18, 24, 36, 48, 54 Mbps
802.11b
1, 2, 5.5, 11 Mbps
802.11g
802.11n (WiFi 4)
6.5 Mbps to 600 Mbps (MCS0 - MCS31, HT 20/40)
802.11ac (WiFi 5)
6.5 Mbps to 3.4 Gbps (MCS0 - MCS9 NSS1/2/3/4, VHT 20/40/80/160)
802.11ax (WiFi 6/6E)
7.3 Mbps to 4.8 Gbps (MCS0 - MCS11 NSS1/2/3/4, HE 20/40/80/160)
