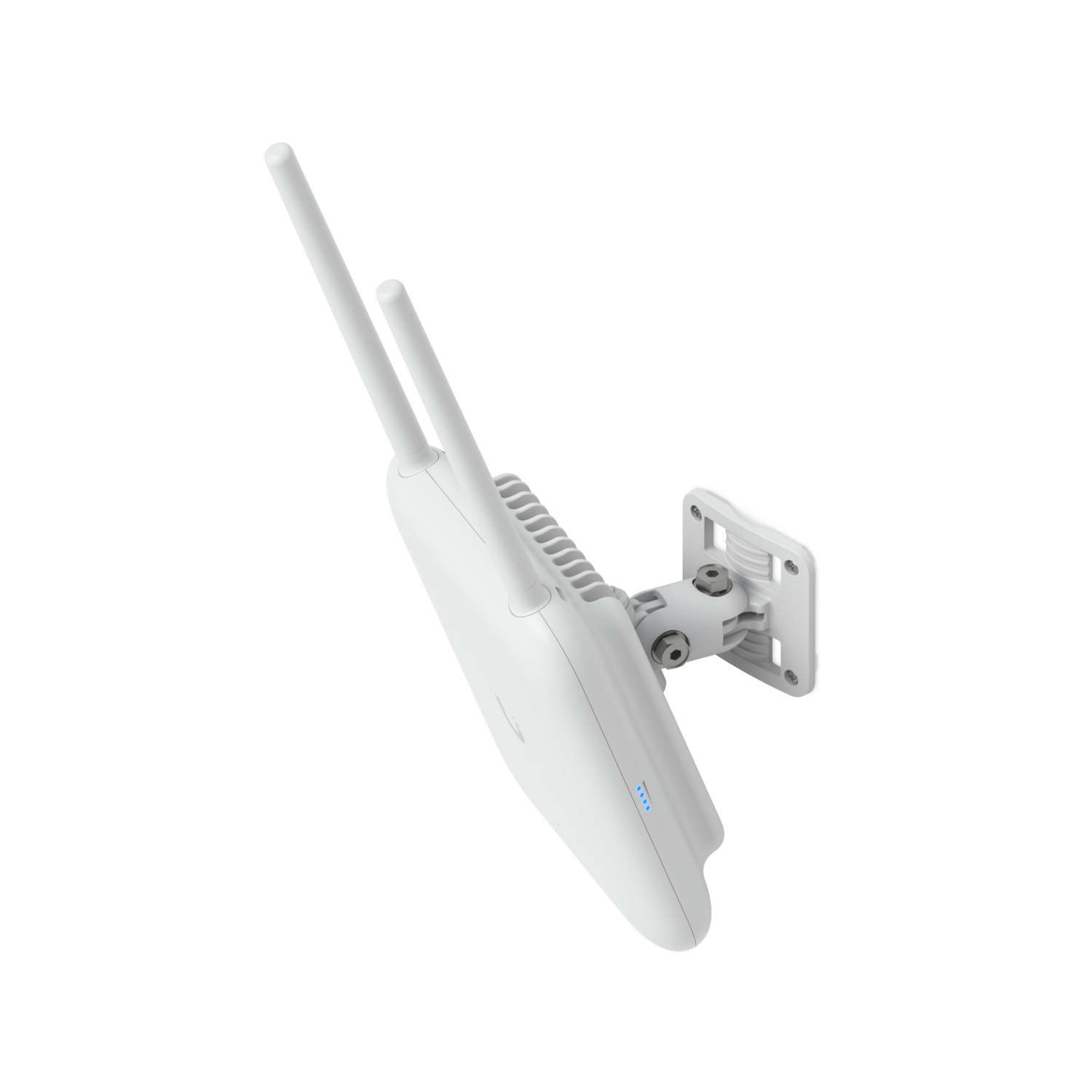

U7-Pro-Outdoor

Wish List

รหัสสินค้า

U7-Pro-Outdoor

WiFi 7 Support2.4/5/GHz Outdoorเหมาะสำหรับพื้นที่ทุกขนาด
✅คลอบคลุมพื้นที่ 465 ตารางเมตร (5,000 ft²)
✅กระจายWi-Fi แบบรอบทิศ
✅300+connected devices
✅PoE+พอร์ต2.5 GbE
✅Indoor/OutdoorIPX6
✅ไม่มี Adapterในแพ๊คเกจ/ต้องการติดต่อAdmin

12,590.00 ฿

จำนวนสินค้าที่เหลือ : 13

เลือกจำนวน

Add to cart

รายละเอียดสินค้า

บริการที่ได้รับ

U7-Pro-Outdoor

>>>รับประกันอายุการใช้งาน 3 ปี<<<

ข้อมูลอุปกรณ์

Datasheet U7-Outdoor

Installation Guide

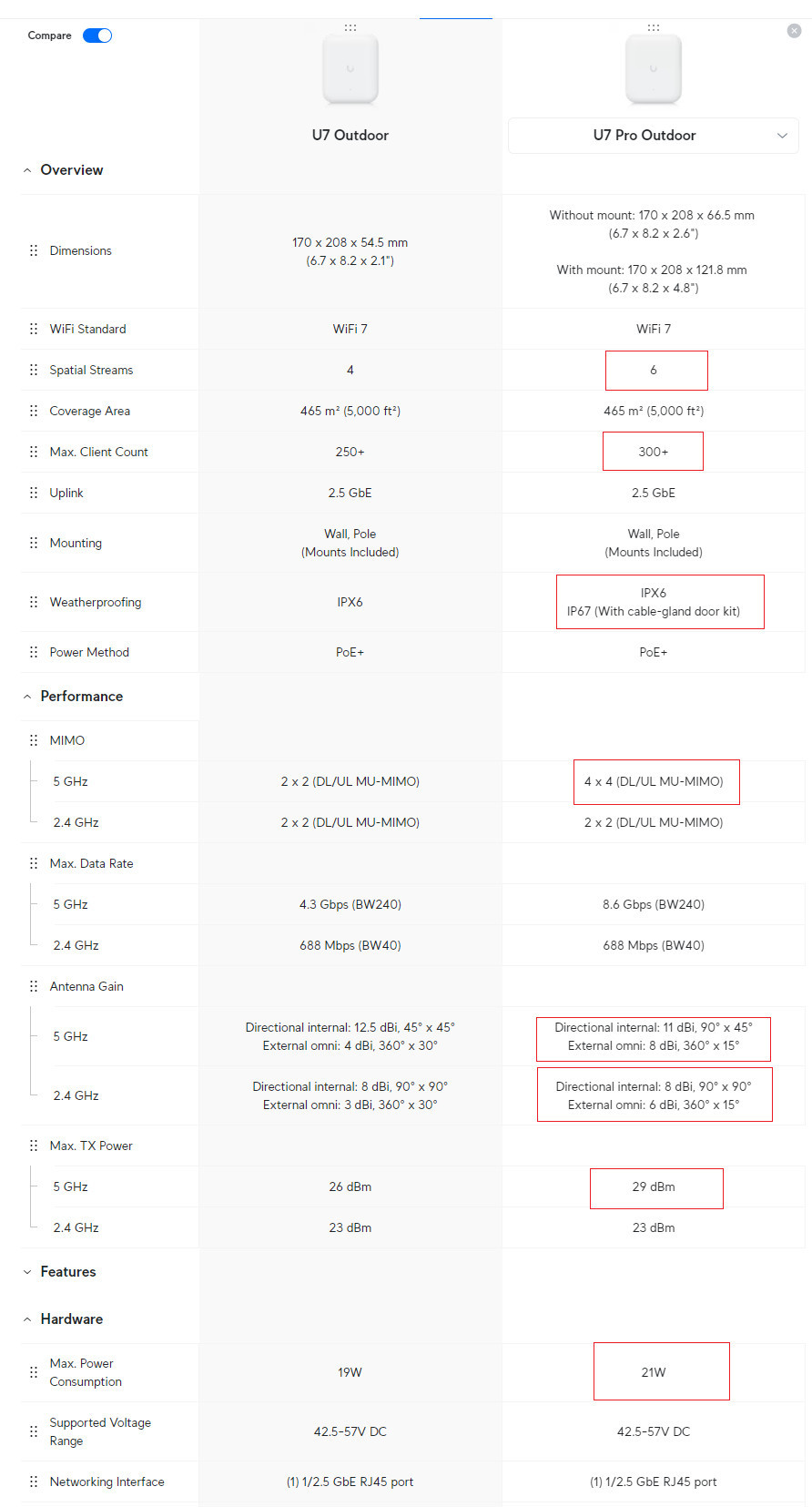

Overview

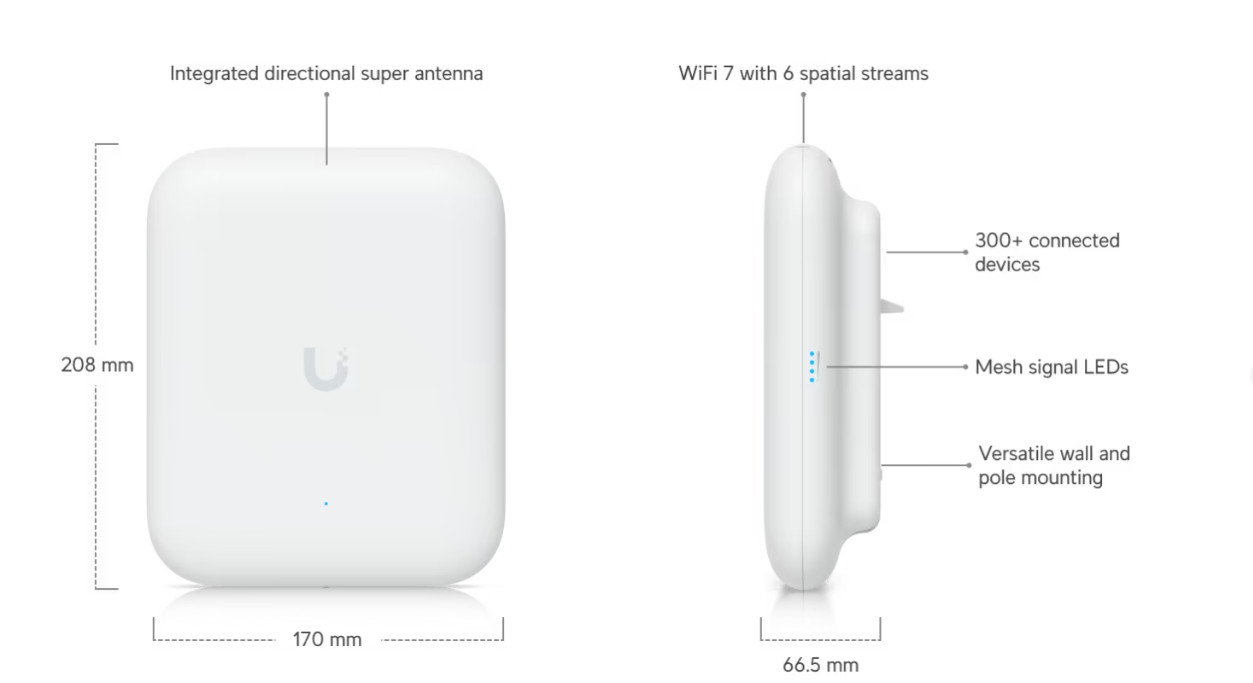

Dimensions	Without mount: 170 x 208 x 66.5 mm (6.7 x 8.2 x 2.6")
	With mount: 170 x 208 x 121.8 mm (6.7 x 8.2 x 4.8")
WiFi Standard	WiFi 7
Spatial Streams	6
Coverage Area	465 m² (5,000 ft²)
Max. Client Count	300+
Uplink	2.5 GbE

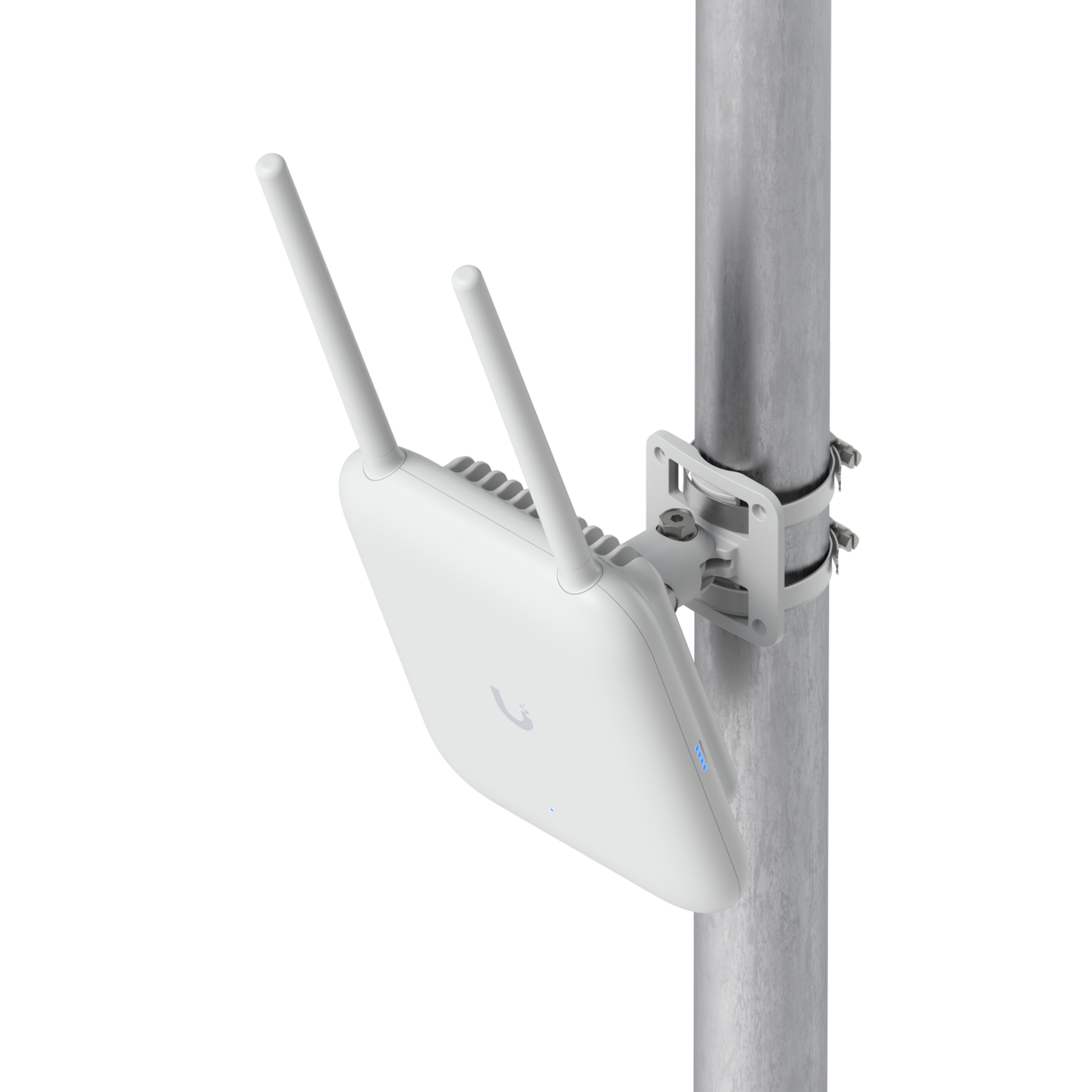

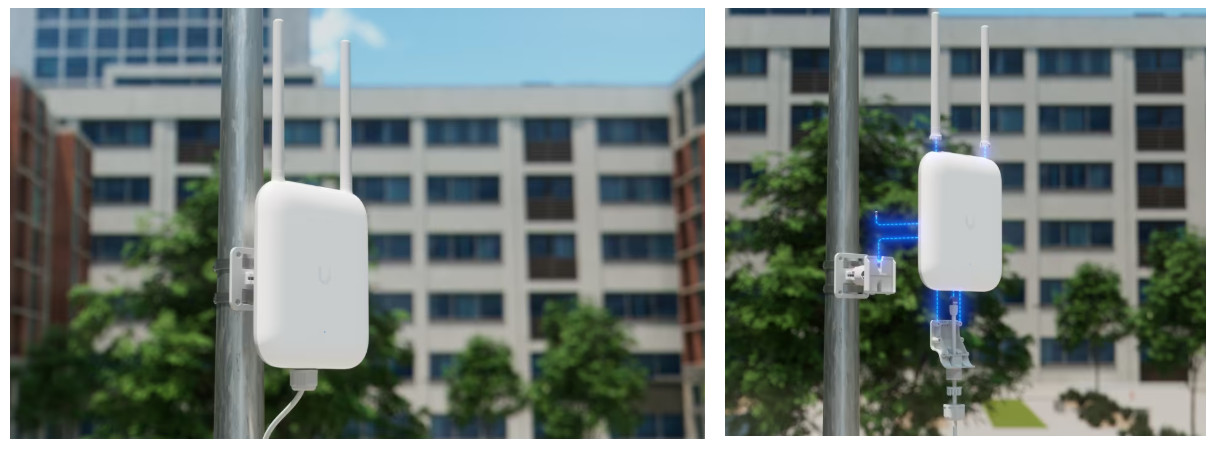

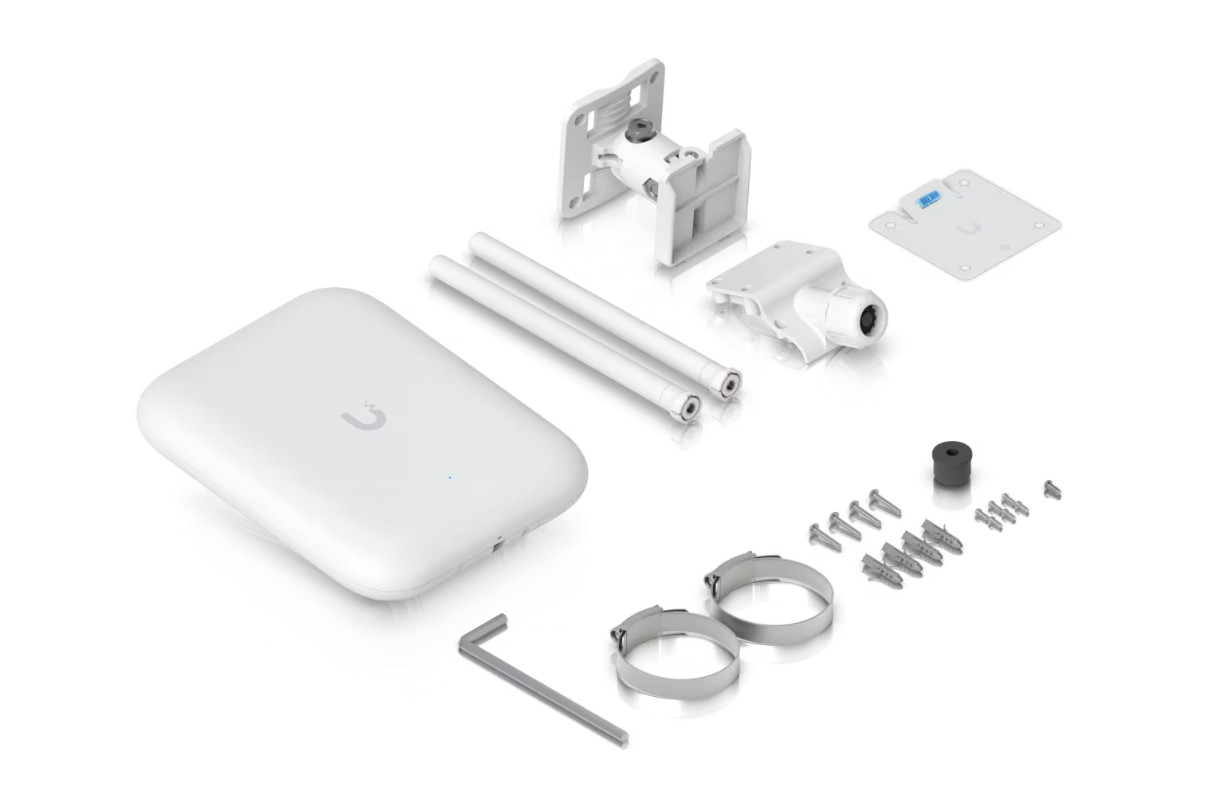

Mounting	Wall, Pole (Mounts Included)
Weatherproofing	IPX6 IP67 (With cable-gland door kit)
Power Method	PoE+ (Not Included PoE+ Adapter )ไม่มี Adapterในแพ๊คเกจ/หากต้องการติดต่อAdmin
Performance
MIMO
5 GHz	4 x 4 (DL/UL MU-MIMO)
2.4 GHz	2 x 2 (DL/UL MU-MIMO)
Max. Data Rate
5 GHz	8.6 Gbps (BW240)
2.4 GHz	688 Mbps (BW40)
Antenna Gain
5 GHz	Directional internal: 11 dBi External omni: 8 dBi
2.4 GHz	Directional internal: 8 dBi External omni: 6 dBi
Max. TX Power
5 GHz	26 dBm
2.4 GHz	23 dBm
Max. BSSIDs	8 per Radio
Supported Data Rates
802.11be (WiFi 7)	7.3 Mbps to 8.6 Gbps (MCS0-MCS13 NSS1/2/3/4, EHT 20/40/80/160/240)
802.11ax (WiFi 6)	7.3 Mbps to 4.8 Gbps (MCS0-MCS11 NSS1/2/3/4, HE 20/40/80/160)
802.11ac (WiFi 5)	6.5 Mbps to 3.4 Gbps (MCS0 - MCS9 NSS1/2/3/4, VHT 20/40/80/160)
802.11n	6.5 Mbps to 300 Mbps (MCS0 - MCS15, HT 20/40)
Features
Wireless Meshing	Yes
Band Steering	Yes
802.11v BSS Transition Management	Yes
802.11r Fast Roaming	Yes
802.11k Radio Resource Management (RRM)	Yes
Advanced Radio Management	Yes
Passpoint (Hotspot 2.0)	Yes
Captive Hotspot Portal
Custom Branding Landing Page	Yes
Voucher Authentication	Yes
Payment-Based Authentication	Yes
External Portal Server Support	Yes
Password Authentication	Yes
Guest Network Isolation	Yes
Private Pre-Shared Key (PPSK)	Yes
WiFi Speed Limiting	Yes
Client Device Isolation	Yes
WiFi Schedules	Yes
RADIUS over TLS (RadSec)	Yes
Dynamic RADIUS-assigned VLAN	Yes
Hardware
Max. Power Consumption	21W
Supported Voltage Range	42.5—57V DC

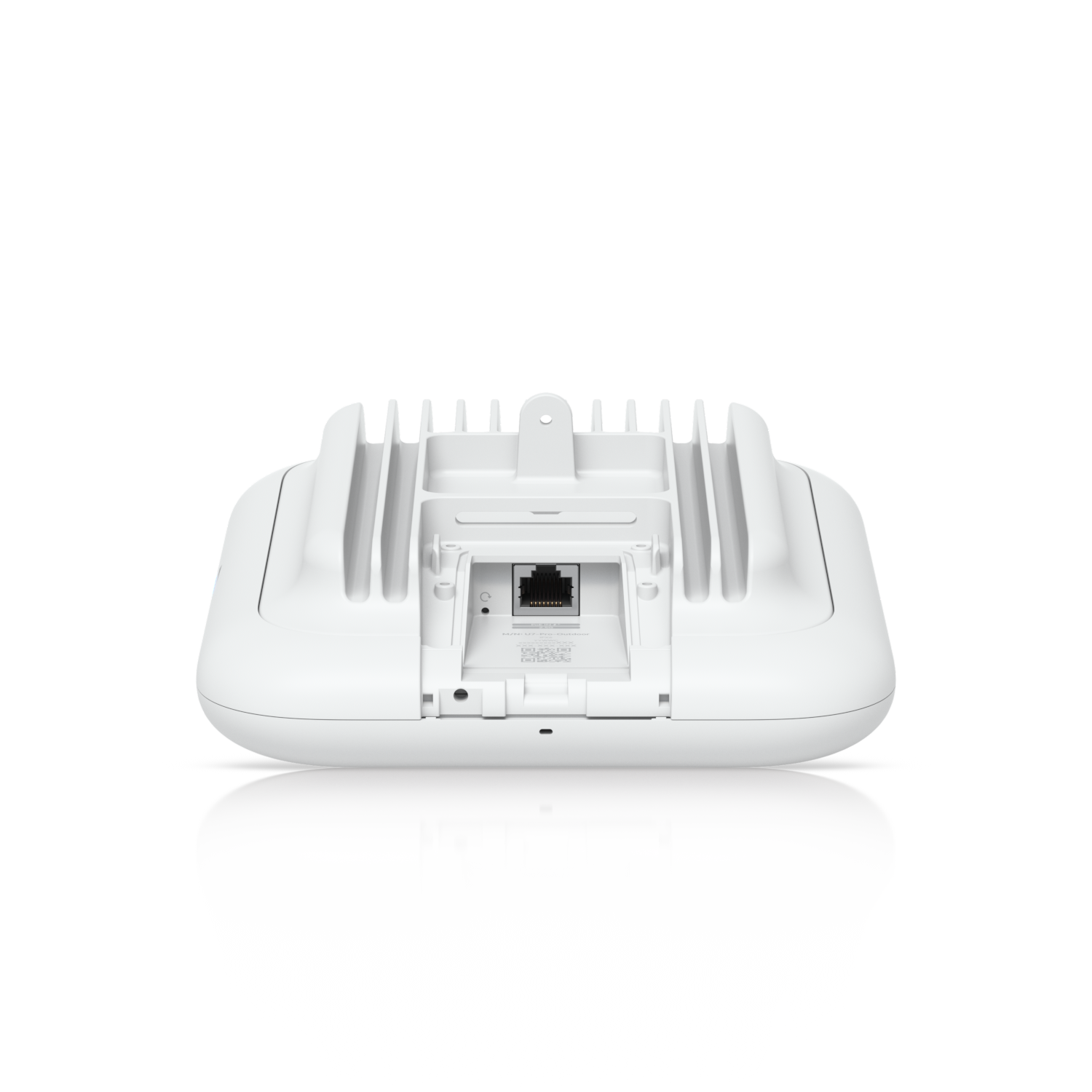

Networking Interface	(1) 1/2.5 GbE RJ45 port
Weight	Device: 1.2 kg (2.6 lb) With mount: 1.33 kg (2.9 lb)
Wind Loading	74.6 N at 200 km/h (16.8 lbf at 125 mph)

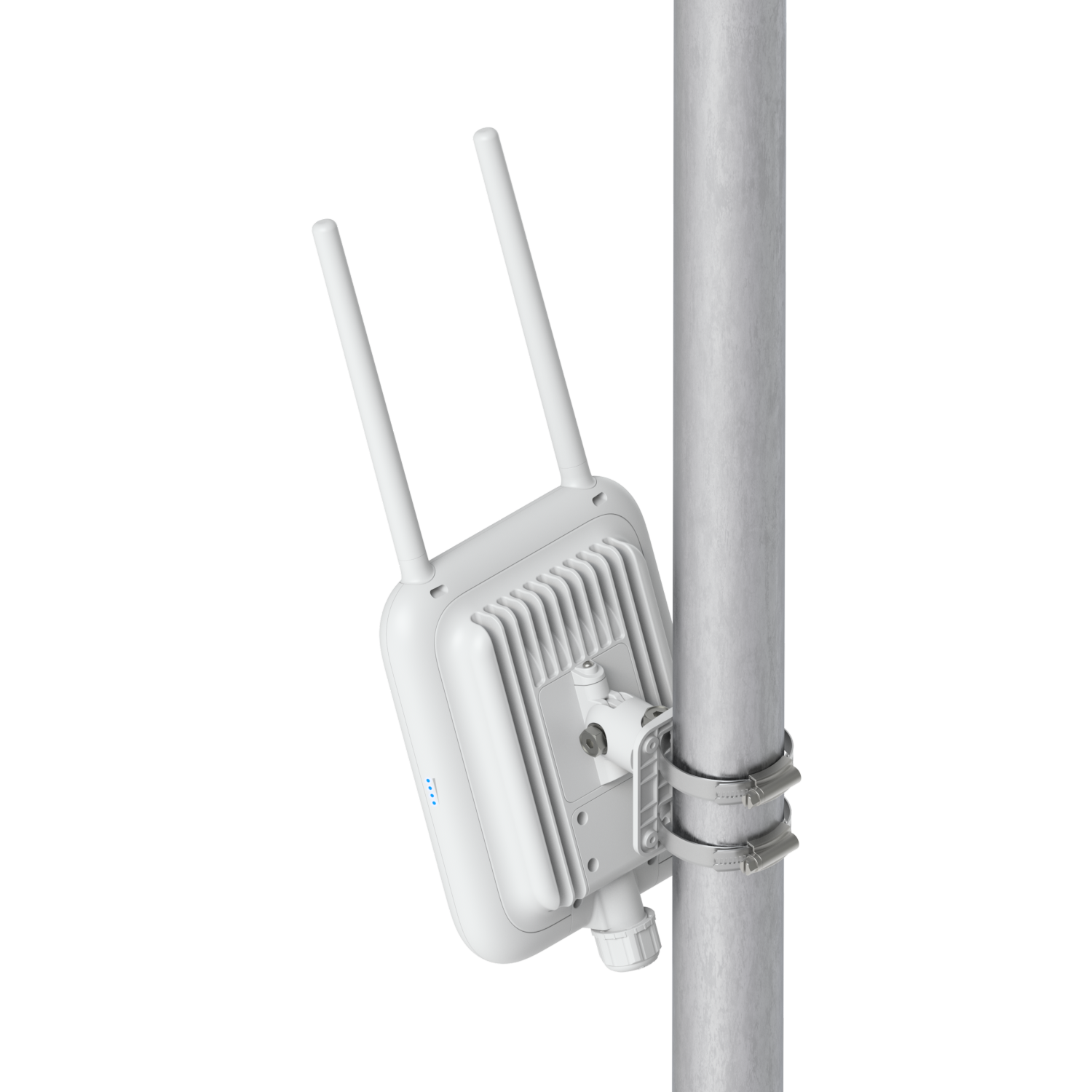

Pole Mount Diameter	1–2.5" (25–63.5 mm)
Management	Ethernet
Enclosure Material	UV-stabilized polycarbonate, aluminum alloy
Mount Material	UV-stabilized polycarbonate
LEDs
System	(1) Power: White/Blue (4) Mesh signal: Blue
Certifications	FCC, IC
Ambient Operating Temperature	-30 to 60° C (-22 to 140° F)
Ambient Operating Humidity	5 to 95% noncondensing
Application Requirements
UniFi Network	Version 9.0.114 and later
UniFi OS	iOS™ version 10.20.2 and later Android™ version 10.21.7 and later
