USW-Flex

Wish List

รหัสสินค้า

USW-Flex

✅1 พอร์ตกิกะบิต Poe in
✅4 พอร์ต Poe Out
✅ ติดตั้งIndoor/Outdoor
✅UniFi NetworkV 5.10.3 Up
✅ในแพ๊คเกจไม่มีอแด๊ปเตอร์ POE:หากต้องการติดต่อ Admin

สเปคของสินค้า

Sale

22%

5,390.00 ฿ 4,250.00 ฿

จำนวนสินค้าที่เหลือ สินค้าหมด

เลือกจำนวน

Add to cart

รายละเอียดสินค้า

บริการที่ได้รับ

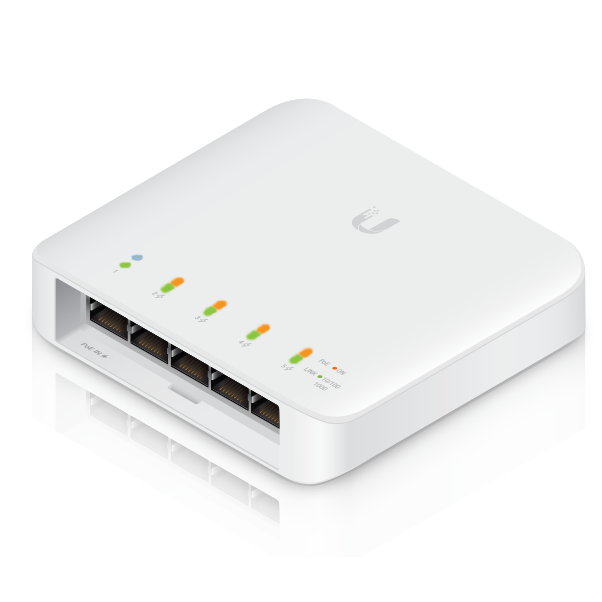

USW‑Flex

>>>รับประกันการใช้งาน 3 ปี<<<

ไม่มี Adapterในแพ๊คเกจ/หากต้องการติดต่อ Admin

รุ่นที่มีจำหน่าย

PoE++input [60W] : POE Out 46W[Not Included]
PoE+input[30W] : POE Out 20W [Not Included]
PoEinput[15W] : PoE input: 8W [Not Included]

ข้อมูลอุปกรณ์

Datasheet USW‑Flex

Mechanical

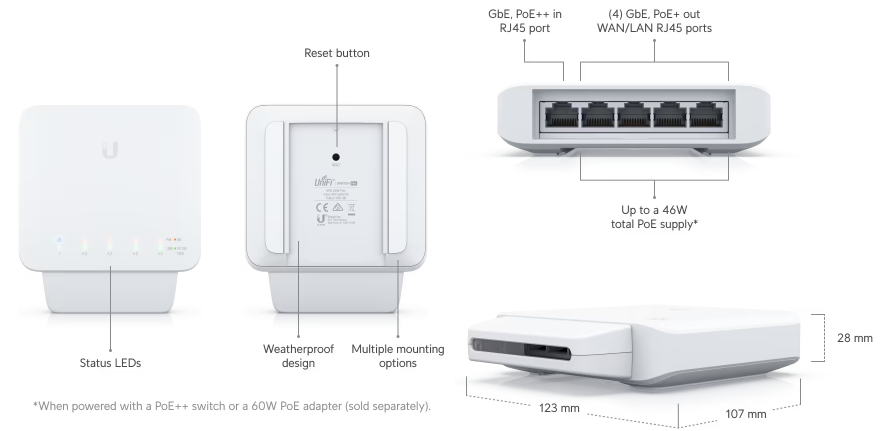

Dimensions	122.5 x 107.1 x 28 mm (4.8 x 4.2 x 1.1")
Weight	230 g (8.1 oz)
Hardware
Management interface	Ethernet In-Band
Networking interface	(5) GbE RJ45 ports
PoE interface	(4) PoE+ (Pins 1, 2+; 3, 6-)
Total non-blocking throughput	5 Gbps
Switching capacity	10 Gbps
Power method	PoE++
Power supply	PoE/PoE+ (Pins 1, 2+; 3, 6-) PoE++ (Pins 1, 2+; 3, 6- and 4, 5+; 7, 8-) 50V/60W PoE adapter (Not included)
Supported voltage range	PoE: 44—57V DC PoE+/PoE++: 50—57V DC
Max. power consumption	5W (Excluding PoE output)
Total available PoE	46W* *When powered with a PoE++ switch or a 60W PoE adapter (Sold separately).
Max. PoE wattage per port by PSE	25W
ESD/EMP protection	Air/contact: ± 16kV
Button	Factory reset
Ambient operating temperature	46W PoE output: -40 to 55° C (-40 to 131° F) 25W PoE output: -40 to 65° C (-40 to 149° F)
Ambient operating humidity	5 to 95% noncondensing
Certifications	CE, FCC, IC
Switching Features
Layer 2 features	Port isolation Port mirroring Multicast / broadcast rate limiting Flow control Jumbo frames Egress rate limit
Layer 3 features	–
LEDs
System	Status
Ethernet	PoE Speed/link/activity
PoE	Link/activity
Application Requirements
UniFi Network	Version 5.10.3 and later

ประเภทอุปกรณ์

PoE Flexibility

The USW-Flex supports a maximum PoE output budget of 46W when powered by 60W 802.3bt PoE++. Four ports offer auto-sensing 802.3af PoE output to power multiple devices on the network.

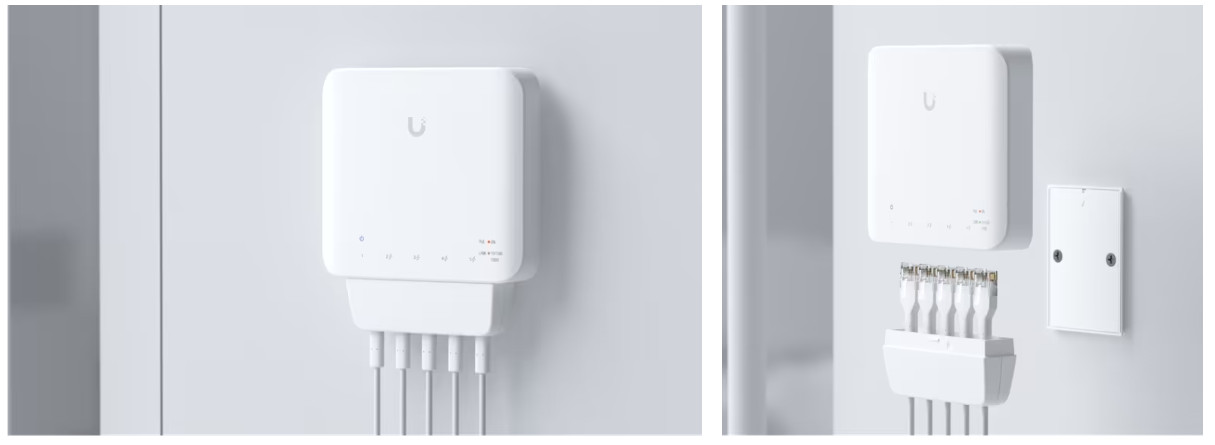

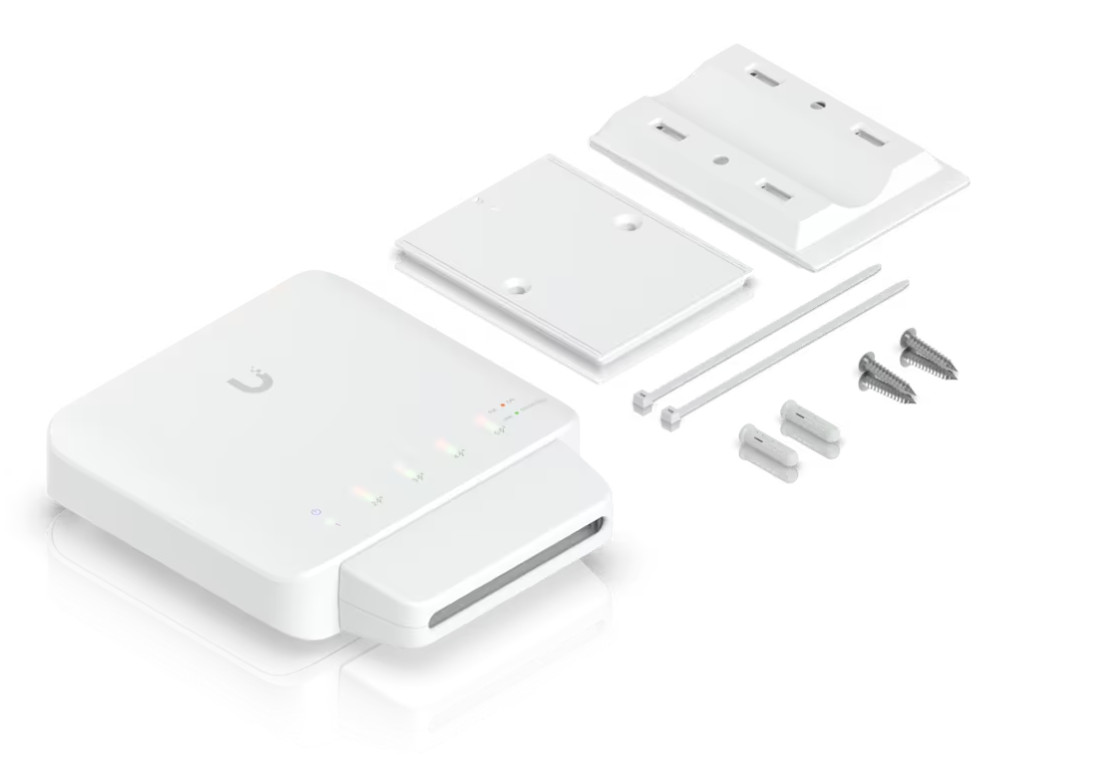

Versatile Mounting

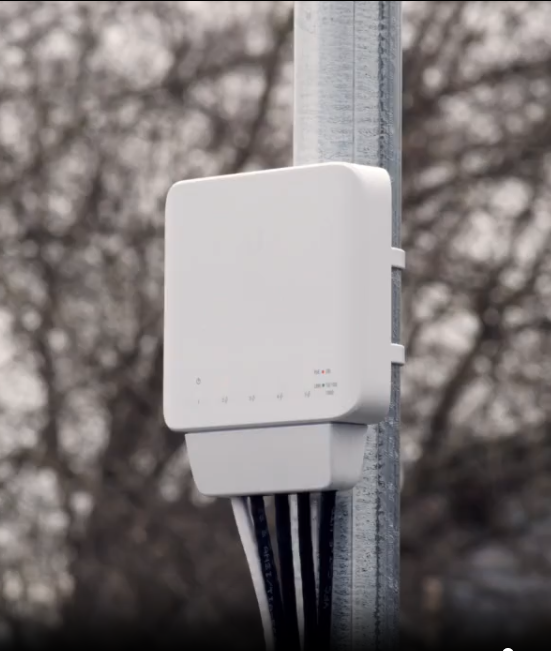

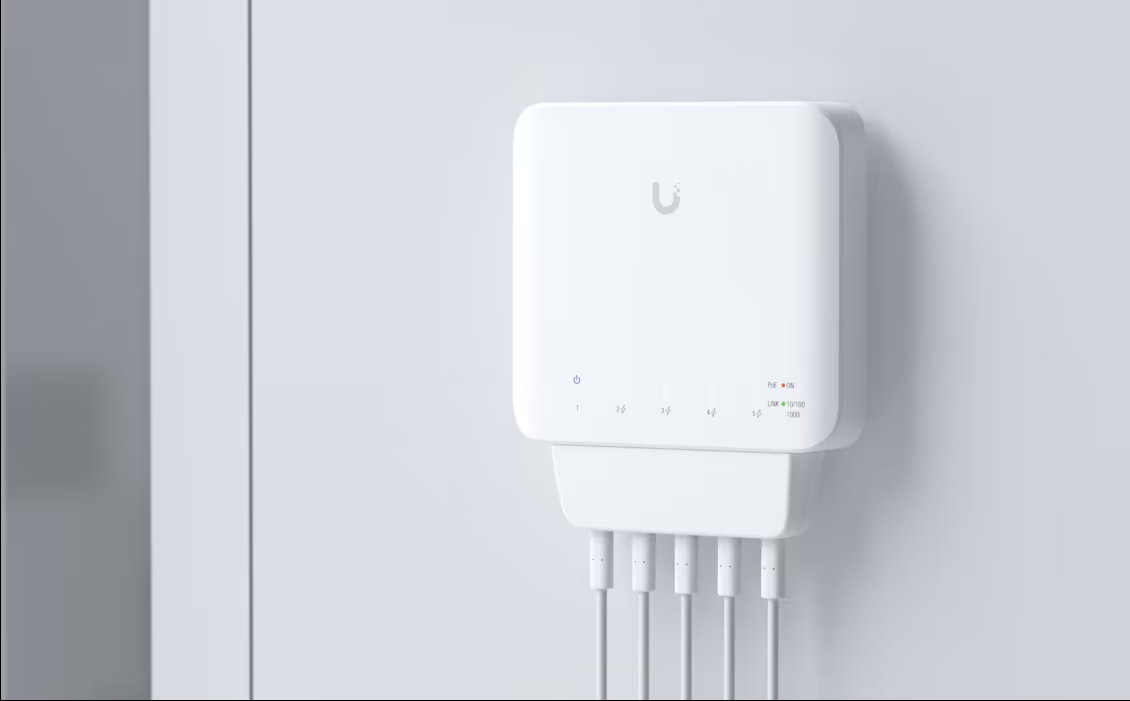

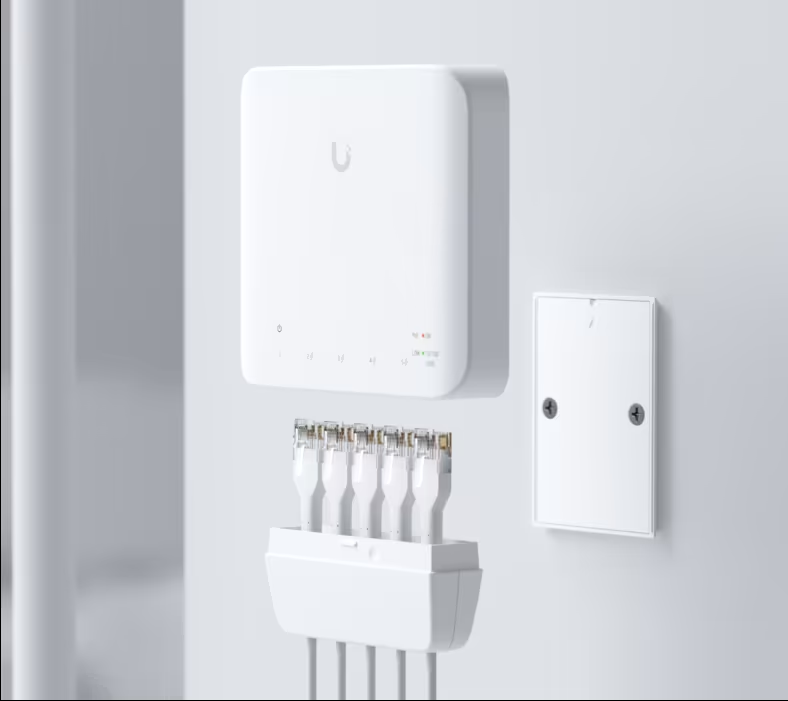

The USW-Flex can be installed horizontally or vertically making it ideal for desktop, magnetic wall-mount, and pole-mount installations.

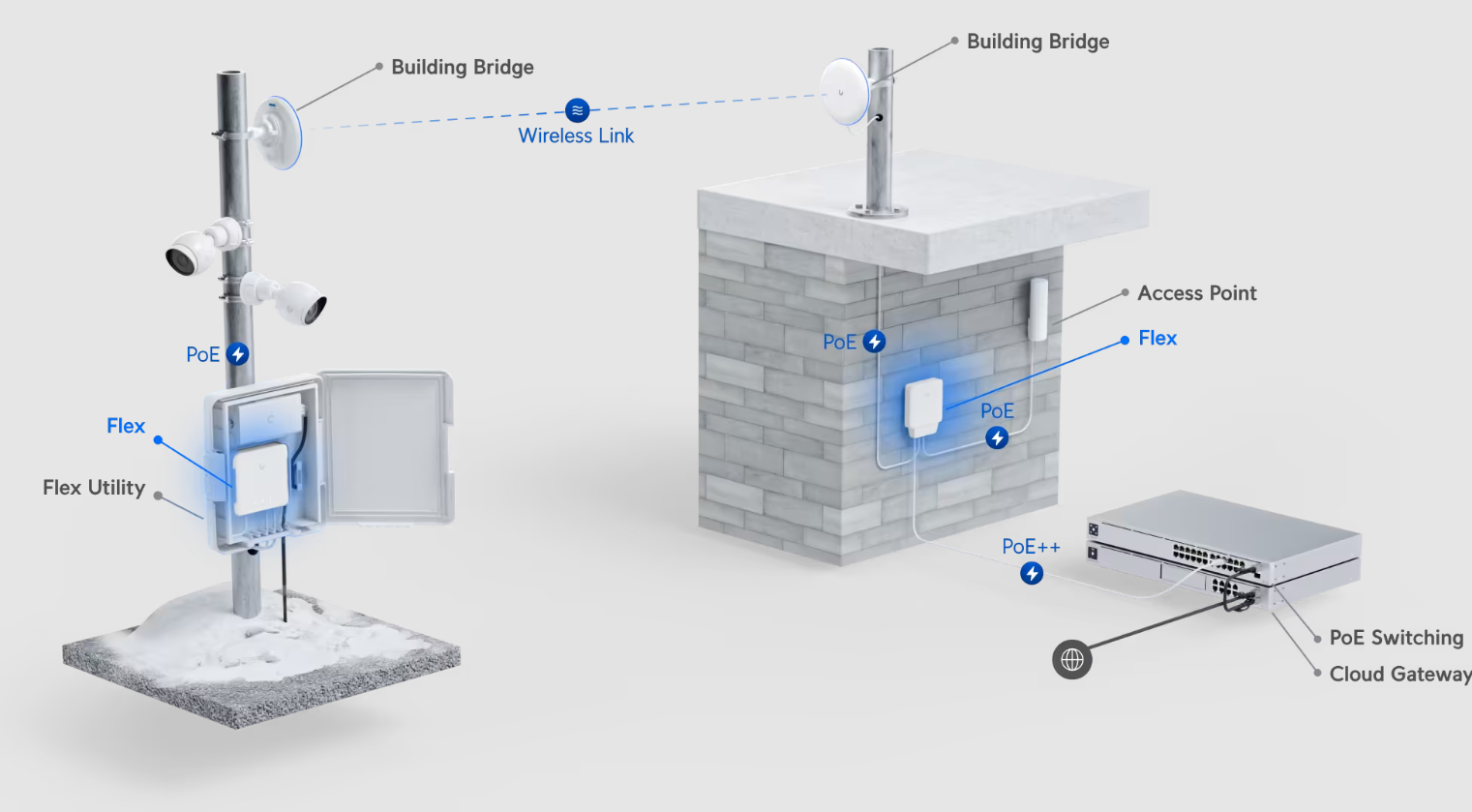

Indoor/Outdoor Design

The USW-Flex is designed for indoor or outdoor use. With its weatherproof housing and versatile mounting options, the USW-Flex provides both flexibility and durability for environments with extreme temperature variations.

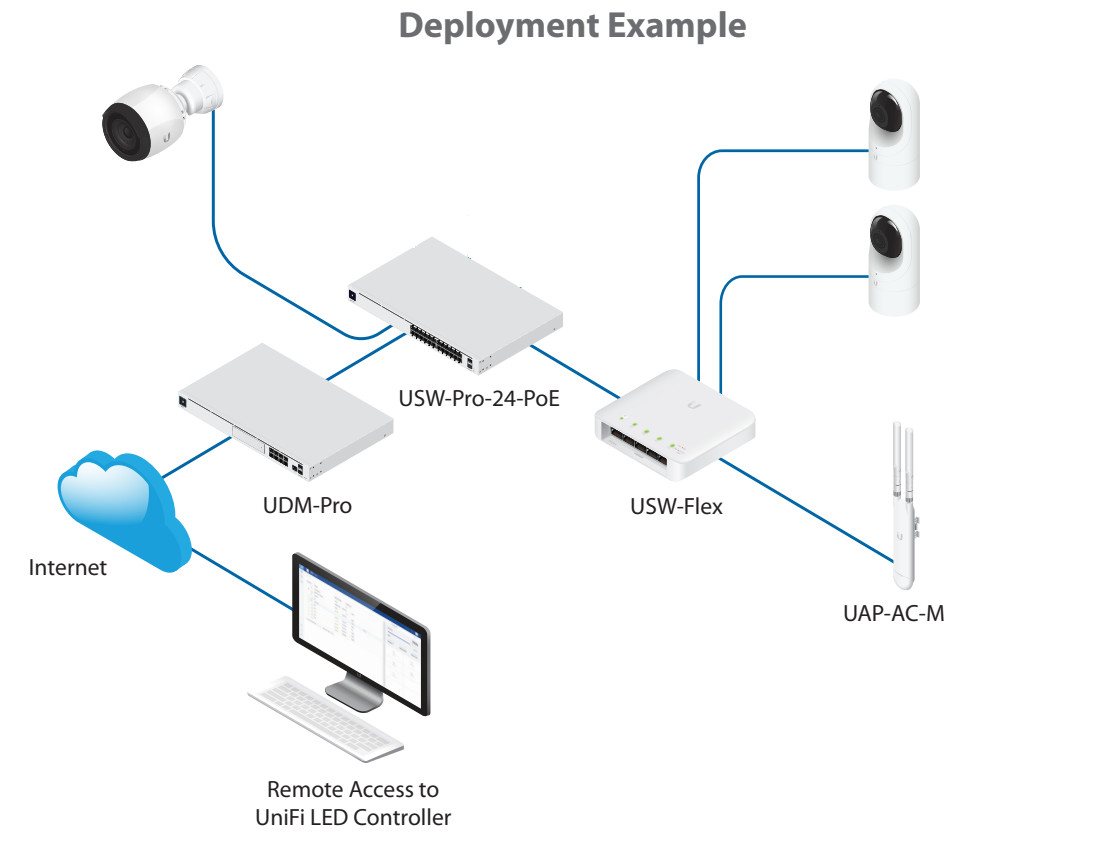

Compatible Products

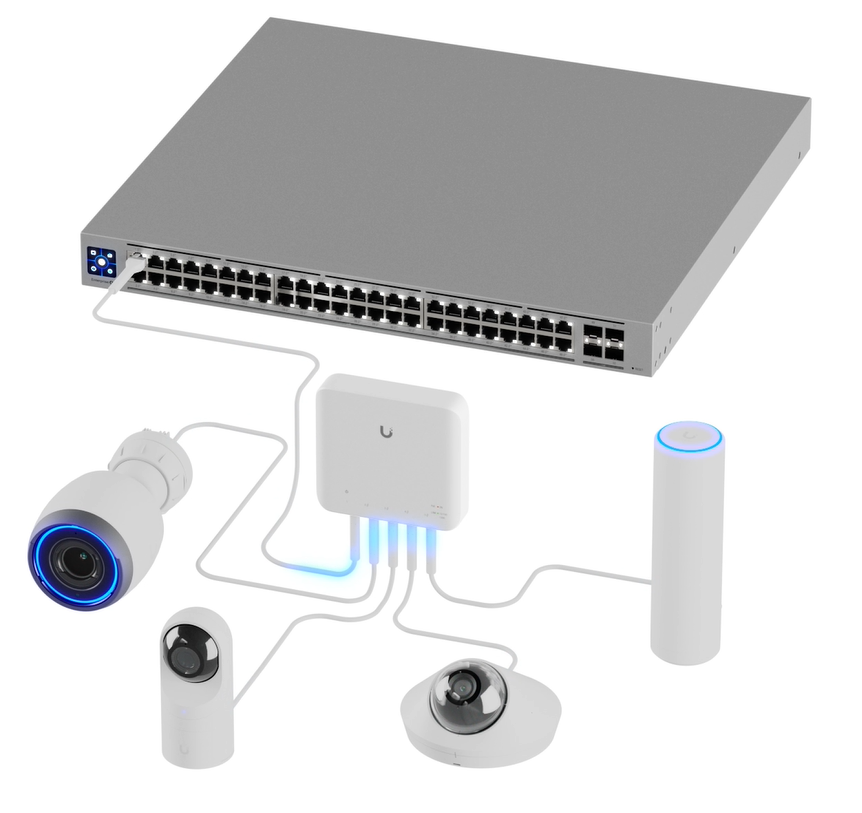

The USW-Flex powers a variety of products, including the UniFi Video Camera G3 Flex, UniFi Video Camera G4 Pro, and UniFi AC Mesh AP, which use 802.3af PoE. To enable its maximum power budget of 46W, the USW-Flex can be powered by the USW-Industrial switch, which provides 60W of 802.3bt PoE++.
