USW-Flex-2.5G-8-PoE [Flex 2.5G PoE]
>>>รับประกันอายุการใช้งาน 3 ปี<<<
ไม่มี Adapterในแพ๊คเกจ/หากต้องการติดต่อ Admin PoE++input [60W][1Gbps] : POE Out 46W[Not Included] PoE+2.5Ginput[30W] : POE Out 16W [Not Included] UACC-Adapter-AC-210W : POE Out 196W [Not Included]
ข้อมูลอุปกรณ์
Datasheet USW-Flex-2.5G-8-PoE
Installation Guide

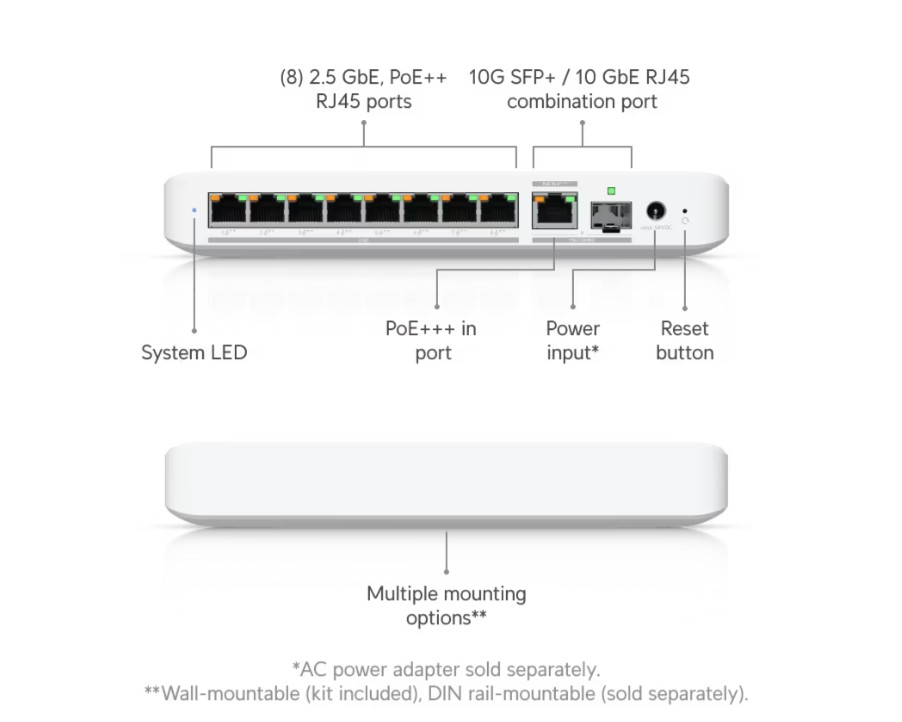

8 (All PoE++) (2.5G/1G/100M/10M)
SFP+[1] (10G/1G)
RJ45[1] (PoE+++) (10G/5G/2.5G/1G/100M)
Max. PoE Output
Up to PoE++
Total PoE Availability
PoE+++ input: 76W[Not Included] PoE++ input: 46W[Not Included] PoE+ input: 16W [Not Included] 210W AC adapter input: 196W[Not Included]
Layer 2 Features
STP & RSTP
✓
Egress Rate Limit
Flow Control
Storm Control
Multicast & Broadcast Rate Limiting
Port Isolation
Port Mirroring
Jumbo Frames
Loop Protection
Hardware
PoE Ports
PoE++
8
Max. PoE Wattage per Port by PSE
PoE
15.4W
PoE+
32W
64W
Max. Power Consumption
14W (Excluding PoE output) with PoE input 17W (Excluding PoE output) with AC adapter input 210W (Including PoE Output)
Switching Capacity
60 Gbps
Total Non-Blocking Throughput
30 Gbps
Forwarding Rate
45 Mpps
Supported VLANs
256
MAC Address Table Size
4,000
Supported Voltage Range
50—57V DC/PoE
Power Input Method
DC Input PoE
Management
Ethernet
Ambient Operating Temperature
-20 to 45° C (-4 to 113° F)
UniFi Network
Version 9.0.114 and later
